Product Summary

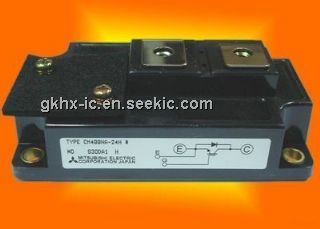

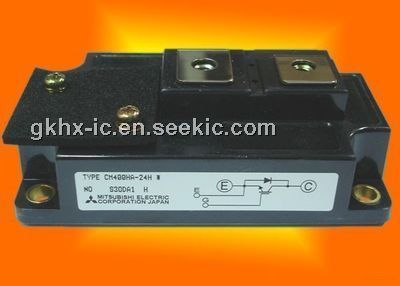

The CM400HB-90H is a Powerex IGBTMOD Module which is designed for use in switching applications. Each module consists of one IGBT Transistor with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HB-90H include Traction, Medium Voltage Drive and High Voltage Power Supplies.
Parametrics
CM400HB-90H absolute maximum ratings: (1)Junction Temperature: -40 to 150℃; (2)Storage Temperature: -40 to 125℃; (3)Collector-Emitter Voltage: 4500 Volts; (4)Gate-Emitter Voltage: ±20 Volts; (5)Collector Current: 400 Amperes; (6)Peak Collector Current (Pulse): 800 Amperes; (7)Diode Forward Current: 400 Amperes; (8)Diode Forward Surge Current (Pulse): 800 Amperes; (9)Maximum Collector Dissipation: 4300 Watts; (10)Isolation Voltage (Charged Part to Baseplate, AC 60Hz 1 min.): 6000 Volts.
Features
CM400HB-90H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM400HB-90H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
