Product Summary

The BSM50GB60DLC is an IGBT-Module.

Parametrics

BSM50GB60DLC electric properties: (1)collector-emitter voltage: 600V; (2)DC-collector current: 75A; (3)repetitive peak collector current: 100A; (4)total power dissipation: 280W; (5)gate-emitter peak voltage: +/-20V; (6)DC forward current: 50A; (7)repetitive peak forw. current: 100A; (8)insulation test voltage: 2.5kV.

Diagrams

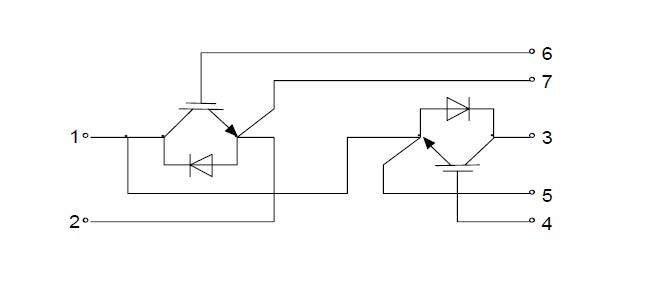

BSM50GB60DLC Circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM50GB60DLC
BSM50GB60DLC
Infineon Technologies
IGBT Modules 600V 50A DUAL
Data Sheet
0-1: $25.46
1-10: $22.92
