Product Summary

The BSM100GB170DN2 is an IGBT Power Module(Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate).

Parametrics

BSM100GB170DN2 absolute maximum ratings: (1)Collector-emitter voltage: 1700 V; (2)Collector-gate voltage: 1700 V; (3)Gate-emitter voltage: ± 20 V; (4)DC collector current: 145A; (5)Pulsed collector current: 290A; (6)Chip temperature: +150℃; (7)Storage temperature: -55~ +150℃.

Features

BSM100GB170DN2 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate; (4)RG on,min = 15 Ohm.

Diagrams

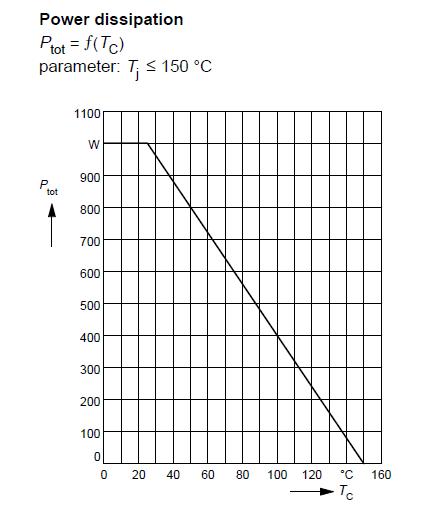

BSM100GB170DN2 Power dissipation

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GB170DN2
BSM100GB170DN2
Infineon Technologies
IGBT Modules 1700V 100A DUAL
Data Sheet
0-6: $101.41
6-10: $91.27
