Product Summary

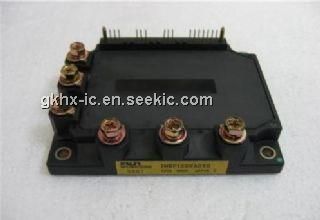

The 7MBP150RA060 is a R series IPM IGBT.

Parametrics

7MBP150RA060 absolute maximum ratings: (1)DC bus voltage: 0~450V; (2)DC bus voltage (surge): 0~500V; (3)DC bus voltage (short operating): 200~400V; (4)Collector-Emitter voltage: 0~600V; (5)DB Reverse voltage: 0~600V; (6)Junction temperature: 150℃; (7)Input voltage of power supply for Pre-Driver: 20V; (8)Input signal voltage: VzV; (9)Input signal current: 1mA; (10)Alarm signal voltage: VccV; (11)Alarm signal current: 15mA; (12)Storage temperature: -40 ~ 125℃; (13)Operating case temperature: -20 ~ 100℃.

Features

7MBP150RA060 features: (1)Low power loss and soft switching; (2)Compatible with existing IPM-N series packages; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

Diagrams

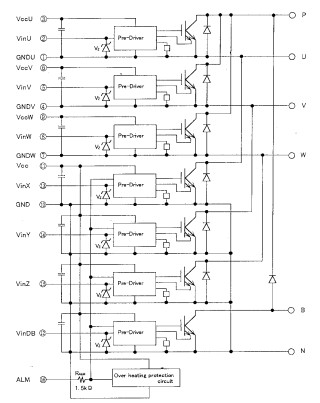

7MBP150RA06 Block diagram
