Product Summary

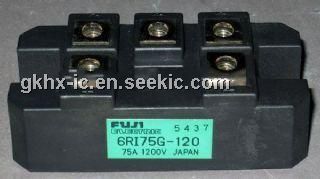

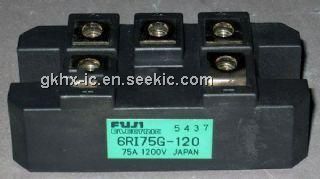

The 6RI75G-120 is a power diode module. Applications include inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers and general purpose DC power supply units.

Parametrics

6RI75G-120 absolute maximum ratings: (1)repective peak reverse voltage: 1200V; (2)non-repective peak reverse voltage: 1320V; (3)average output current: 75A; (4)surge current: 1000A; (5)junction temperature: -40 to +150℃; (6)Storage Temperature: -40 to +125℃.

Features

6RI75G-120 features: (1)all the terminal and the mounting plate are elecrically isolated. It can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)the diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity vatiation; (3)6 diodes chips are connected to the 3-phase bridge rectifying circuit inside the module a cost-effective feature.

Diagrams

6RI75G-120 inner circuit schematic
