Product Summary

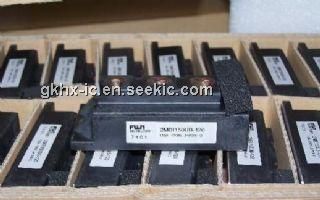

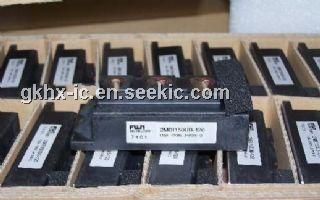

The 2MBI150UB-120 is an IGBT Module U-Series. Applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI150UB-120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current IC: 200A(Tc=25℃) 150A(Tc=80℃); (4)Collector Power Dissipation: 780W; (5)Junction temperature: +150℃; (6)Storage temperature: -40 to +125℃; (7)Isolation voltage: 2500vac.

Features

2MBI150UB-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

2MBI150UB-120 Equivalent Circuit Schematic
