Product Summary

The QM30TB-2H is a Mitsubishi transistor module. The applications of the QM30TB-2H are: DC motor controllers, NC equipment, Welders.

Parametrics

QM30TB-2H absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Collector-emitter voltage: 1200V; (3)Collector-base voltage: 1200V; (4)Emitter-base voltage: 7V; (5)Collector current: 30A; (6)Collector reverse current: 30A; (7)Collector dissipation: 310W; (8)Base current: 2A; (9)Surge collector reverse current (forward diode current): 300A; (10)Junction temperature: –40 to +150℃; (11)Storage temperature: –40 to +125℃.

Features

QM30TB-2H features: (1)IC Collector current: 30A; (2)VCEX Collector-emitter voltage: 1200V; (3)hFE DC current gain: 75.

Diagrams

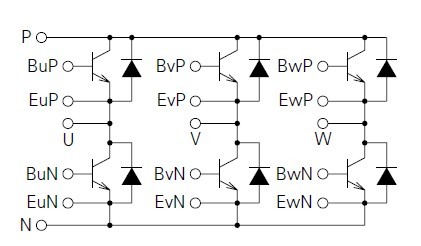

QM30TB-2H diagram
