Product Summary

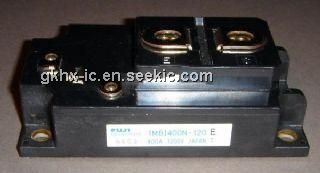

The 1MBI400N-120 is an IGBT module. Applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1MBI400N-120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Max. Power Dissipation: 3100W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500V.
Features
1MBI400N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1MBI400N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
