XIO1100GGB

XIO1100GGB, PCI Express PHY, BGA, -0.5V to 3.6V, 20mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 100 :	8.00 / Piece

PartNumber:: XIO1100GGB

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-30

From Other Seller

Part Number:XIO1100GGB
US $8.00 - 8.00
Quantity:

piece

Product Summary

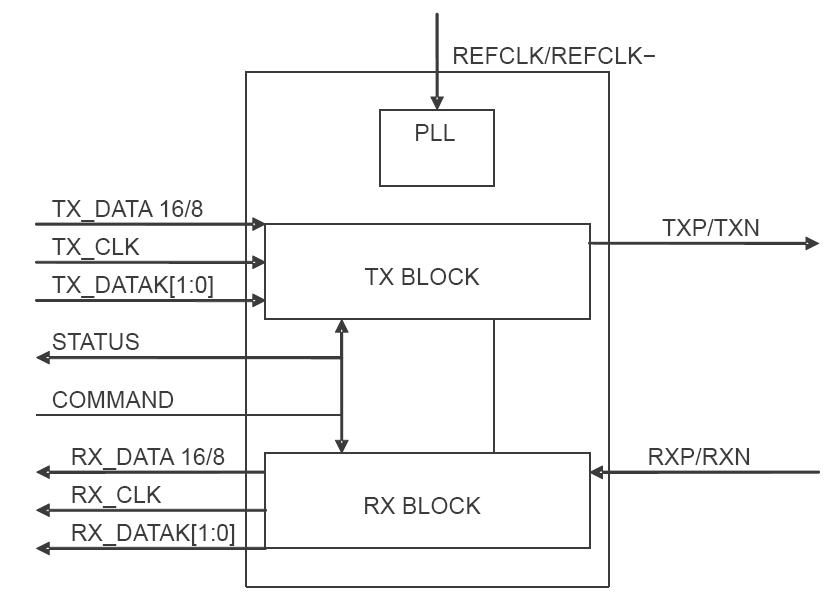

The XIO1100GGB is a PCI Express PHY that is compliant with PCI Express Base Specification Revision 1.1 and that interfaces the PCI Express Media Access Layer (MAC) to a PCI Express serial link by using a modified version of the interface described in PHY Interface for the PCI Express Architecture (also known as PIPE interface) by Intel Corporation. This modified version of the PIPE interface is referred to as a TI-PIPE interface throughout this data manual. The XIO1100GGB interfaces to a 2.5Gbps PCI Express serial link with a transmit differential pair (TXP and TXN) and a receive differential pair (RXP and RXN). Incoming data at the XIO1100GGB receive differential pair (RXP and RXN) is forwarded to the MAC on the RXDATA output bus.

Parametrics

XIO1100GGB absolute maximum ratings: (1)Supply voltage range: 3.3 V Supply: -0.5 V to 3.6 V; (2)1.8 V Supply: -0.5 V to 1.95 V; (3)1.5 V Supply: -0.5 V to 1.65 V; (4)Input voltage range, VI: PCI Express (RX): –0.6 V to 0.6 V; (5)VI: PCI Express REFCLK (single-ended): –0.5 V to VDDA_33 + 0.5V; (6)VI: PCI Express REFCLK (differential):–0.5 V toVDD_15 + 0.5 V; (7)Input clamp current, (VI＜0 or VI＞VDD) (see Note 1):±20mA; (8)Output clamp current, (VO＜0 or VO＞VDD) (see Note 2):±20mA; (9)Human body model (HBM) ESD performance: 1500 V; (10)Charged device model (CDM) ESD performance: 500 V; (11)Storage temperature range, Tstg:–65℃ to 150℃.

Features

XIO1100GGB features: (1)X1 PCI Express Serial Link; (2)PCI Express 1.1 Compliant; (3)Selectable Reference Clock (100 MHz, 125 MHz); (4)Low-Power Capability; (5)TI-PIPE MAC Interface; (6)Source-Synchronous TX and RX Ports; (7)125 MHz TX/RX Clocks; (8)Selectable 16-Bit SDR or 8-Bit DDR Mode; (9)100-Pin MicroStar BGA Package; (10)Selectable 1.5.V or 1.8.V LVCMOS Buffers.
