Product Summary

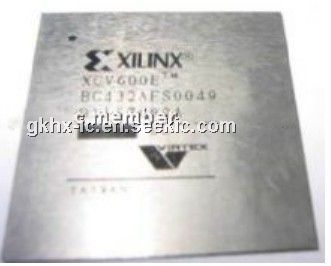

The XCV600EBG432 is a Field-Programmable Gate Array (FPGA). The XCV600EBG432 gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XCV600EBG432 offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz. Features of the XCV600EBG432 include block RAM (to 56K bits), distributed RAM (to 75,264 bits), 16 selectable I/O standards, and four DLLs. Fast, predictable interconnect means that successive design iterations continue to meet timing requirements. The XCV600EBG432 is a superior alternative to mask-programmed ASICs. The FPGA avoids the initial cost, lengthy development cycles, and inherent risk of conventional ASICs. Also, the XCV600EBG432 permits design upgrades in the field with no hardware replacement necessary (impossible with ASICs).
Parametrics
XCV600EBG432 absolute maximum ratings: (1)VCCINT, Supply voltage relative to GND: –0.5 to 3.0 V; (2)VCCO, Supply voltage relative to GND: –0.5 to 4.0 V; (3)VREF, Input reference voltage: –0.5 to 3.6 V; (4)VIN, Input voltage relative to GND, 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance: –0.5 to VCCO+0.5 V; (5)VTS, Voltage applied to 3-state output 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance: –0.5 to VCCO+0.5 V; (6)TSTG, Storage temperature (ambient): –65 to +150℃; (7)TJ Junction temperature: +125℃ max.
Features
XCV600EBG432 features: (1)Fully PCI compliant; (2)Low-power segmented routing architecture; (3)Full readback ability for verification/observability; (4)Dedicated carry logic for high-speed arithmetic; (5)Efficient multiplier support; (6)Cascade chain for wide-input functions; (7)Abundant registers/latches with enable, set, reset; (8)Four dedicated DLLs for advanced clock control; (9)Four primary low-skew global clock distribution nets; (10)Pb-free package options; (11)Low-cost packages available in all densities; (12)Family footprint compatibility in common packages; (13)16 high-performance interface standards; (14)Hot swap Compact PCI friendly; (15)Zero hold time simplifies system timing.

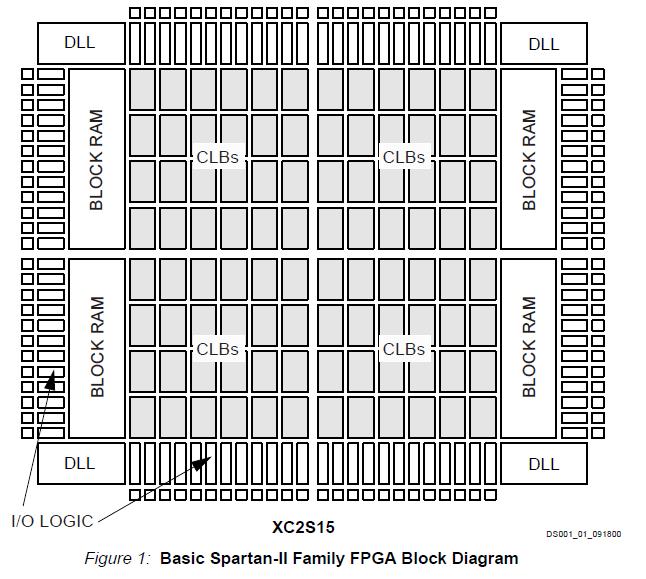

Diagrams
