Product Summary

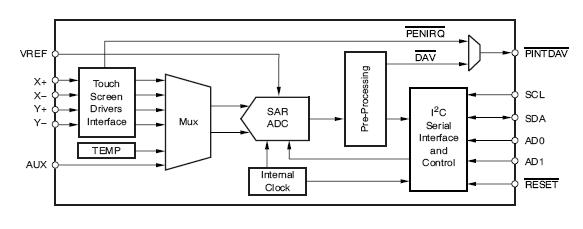

The TSC2004IRTJT is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. The TSC2004IRTJT works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. The applications of the TSC2004IRTJT include Cellular Phones, Portable Instruments, MP3 Players, Pagers, Multiscreen Touch Control.

Parametrics

TSC2004IRTJT absolute maximum ratings: (1)Analog input X+, Y+, AUX to SNSGND: –0.4 to SNSVDD + 0.1 V; (2)Analog input X–, Y– to SNSGND: –0.4 to SNSVDD + 0.1 V; (3)SNSVDD to SNSGND: –0.3 to 5 V; (4)SNSVDD to AGND: –0.3 to 5 V; (5)I/OVDD to DGND: –0.3 to 5 V; (6)SNSVDD to I/OVDD: –2.40 to +0.3 V; (7)Digital input voltage to DGND: –0.3 to I/OVDD + 0.3 V; (8)Digital output voltage to DGND: –0.3 to I/OVDD + 0.3 V; (9)Operating free-air temperature range, TA: –40 to +85℃; (10)Storage temperature range, TSTG: –65 to +150℃; (11)Junction temperature, TJ Max: +150℃; (12)Vapor phase (60 sec): +215℃; (13)Lead temperature Infrared (15 sec): +220℃; (14)IEC contact discharge(2) X+, X–, Y+, Y–: ±12 kV; (15)IEC air discharge(2) X+, X–, Y+, Y–: ±25 kV.

Features

TSC2004IRTJT features: (1)4-Wire Touch Screen Interface; (2)Ratiometric Conversion; (3)Single 1.2V to 3.6V Supply; (4)Preprocessing to Reduce Bus Activity; (5)High-Speed I2C-Compatible Interface; (6)Internal Detection of Screen Touch; (7)Register-Based Programmable; (8)On-Chip Temperature Measurement; (9)Touch Pressure Measurement; (10)Auto Power-Down Control; (11)Low Power; (12)2.5 x 2.5 WCSP-18 and 4 x 4 QFN-20 Packages.
