TPS61220DCKR

TPS61220DCKR, low input voltage step-up converter, QFN, -0.3V to 7.5V, 5.5μA, 1.5kV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	0.90 / Piece

PartNumber:: TPS61220DCKR

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:TPS61220DCKR
US $0.90 - 0.90
Quantity:

piece

Product Summary

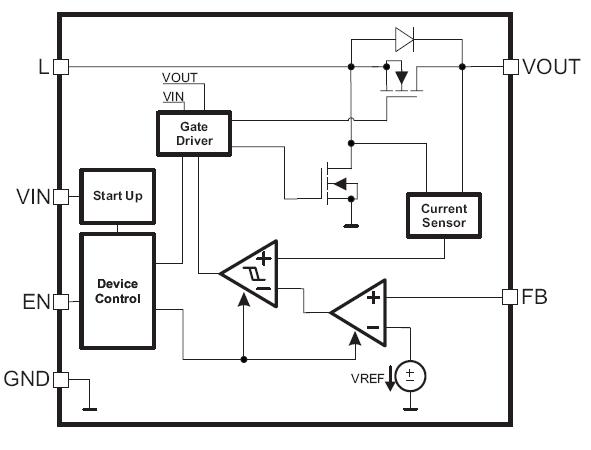

The TPS61220DCKR is a low input voltage step-up converter in 6 pin SC-70 package. It provides a power-supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Possible output currents depend on the input-to-output voltage ratio. The TPS61220DCKR is based on a hysteretic controller topology using synchronous rectification to obtain maximum efficiency at minimal quiescent currents. The output voltage of the adjustable version can be programmed by an external resistor divider, or is set internally to a fixed output voltage. The converter can be switched off by a featured enable pin. While being switched off, battery drain is minimized. The device is offered in a 6-pin SC-70 package (DCK) measuring 2 mm x 2 mm to enable small circuit layout size. The applications of the TPS61220DCKR include Battery Powered Applications, Solar or Fuel Cell Powered Applications, Consumer and Portable Medical Products, Personal Care Products, White or Status LEDs, Smartphones.

Parametrics

TPS61220DCKR absolute maximum ratings: (1)VIN Input voltage range on VIN, L, VOUT, EN, FB: -0.3 to 7.5 V; (2)TJ Operating junction temperature range: –40 to 150℃; (3)Tstg Storage temperature range: –65 to 150℃; (4)Human Body Model (HBM) (2): 2 kV; (5)ESD Machine Model (MM) (2): 200 V; (6)Charged Device Model (CDM)(2): 1.5 kV.

Features

TPS61220DCKR features: (1)Up to 95% Efficiency at Typical Operating Conditions; (2)Fixed Output Voltage Versions; (3)Small 6-pin SC-70 Package; (4)5.5μA Quiescent Current; (5)Startup Into Load at 0.7 V Input Voltage; (6)Operating Input Voltage from 0.7 V to 5.5 V; (7)Adjustable Output Voltage from 1.8 V to 5.5 V; (8)Operating Input Voltage from 0.7 V to 5.5 V; (9)Pass-Through Function during Shutdown; (10)Minimum Switching Current 200 mA.
