Product Summary

The TPS61030RSAR is a 96% efficient synchronous boost converter with 4A switch. It provides a power supply solution for products powered by either a one-cell Li-Ion or Li-polymer, or a two to three-cell alkaline, NiCd or NiMH battery. The TPS61030RSAR generates a stable output voltage that is either adjusted by an external resistor divider or fixed internally on the chip. The TPS61030RSAR provides high efficient power conversion and is capable of delivering output currents up to 1 A at 5 V at a supply voltage down to 1.8 V. The TPS61030PWPR is packaged in a 16-pin QFN package measuring 4 mm x 4 mm (RSA) or in a 16-pin TSSOP PowerPAD package (PWP).

Parametrics

TPS61030RSAR absolute maximum ratings: (1)Input voltage range on LBI: -0.3 V to 3.6 V; (2)Input voltage range on SW, VOUT, LBO, VBAT, SYNC, EN, FB: -0.3 V to 7 V; (3)Maximum junction temperature TJ: -40℃ to 150℃; (4)Storage temperature range Tstg: -65℃ to 150℃.

Features

TPS61030RSAR features: (1)Device Quiescent Current: 20-μA (Typ); (2)Input Voltage Range: 1.8-V to 5.5-V; (3)Fixed and Adjustable Output Voltage Options Up to 5.5-V; (4)Power Save Mode for Improved Efficiency at Low Output Power; (5)Low Battery Comparator; (6)Low EMI-Converter (Integrated Antiringing Switch); (7)Load Disconnect During Shutdown; (8)Over-Temperature Protection; (9)Available in a Small 4 mm x 4 mm QFN-16 or in a TSSOP-16 Package.

Diagrams

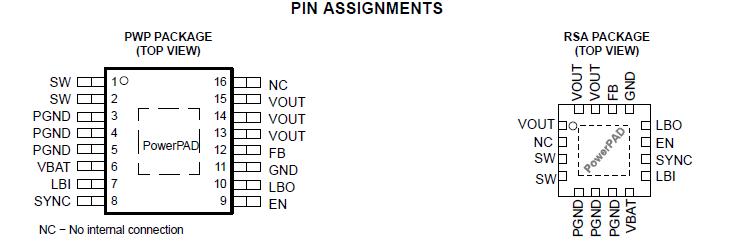

TPS61030RSAR Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS61030RSAR
TPS61030RSAR
Texas Instruments
DC/DC Switching Regulators 1Adj 1-A 96% Eff Boost Converter
Data Sheet
0-1: $3.10
1-25: $2.83
25-100: $2.58
100-250: $2.33
TPS61030RSARG4
TPS61030RSARG4
Texas Instruments
DC/DC Switching Regulators 1Adj 1-A 96% Eff Boost Converter
Data Sheet
0-2230: $1.70
2230-3000: $1.64
