Product Summary

The TLV7211AIDBVRG4 is a micropower CMOS comparator available in the space-saving SOT-23-5 package. This makes the comparators ideal for space- and weight-critical designs. The TLV7211AIDBVRG4 features an input offset voltage of 5 mV. The main benefits of the SOT-23-5 package are most apparent in small portable electronic devices, such as mobile phones, pagers, notebook computers, personal digital assistants, and PCMCIA cards. The rail-to-rail input voltage makes the TLV7211AIDBVRG4 a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits. The applications of the TLV7211AIDBVRG4 include Battery-Powered Products, Notebooks and PDAs, Mobile Communications, Alarm and Security Circuits, Direct Sensor Interface, Replaces Amplifiers Used as Comparators With Better Performance and Lower Current.

Parametrics

TLV7211AIDBVRG4 absolute maximum ratings: (1)VCC+ – VCC– Supply voltage(2): 16V; (2)VID Differential input voltage(3): ±supply voltageV; (3)VI Input voltage range (any input): VCC––0.3 VCC+ + 0.3 V; (4)VO Output voltage range: VCC––0.3 VCC+ + 0.3V; (5)II Input current: ±5mA; (6)IO Output current: ±30mA; (7)θJA Package thermal impedance(4) (5) DBV package: 206℃/W; (8)DCK package: 259℃/W; (9)TJ Operating virtual junction temperature: 150℃; (10)Tstg Storage temperature range:–65 to 150℃.

Features

TLV7211AIDBVRG4 features: (1) Parameters Specified at 2.7-V, 5-V, and 15-V Supplies; (2) Supply Current 7μA (Typ) at 5 V; (3) Response Time 4μs (Typ) at 5 V; (4) Push-Pull Output; (5) Input Common-Mode Range Beyond VCC–and VCC+; (6) Low Input Current.

Diagrams

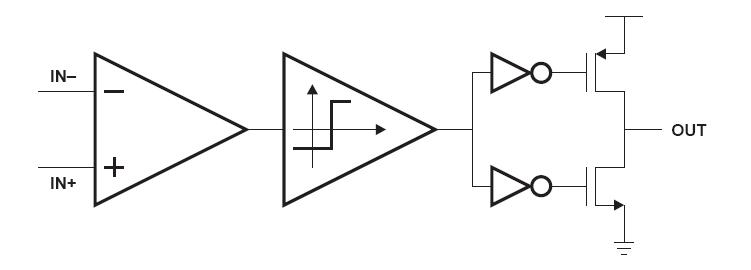

TLV7211AIDBVRG4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV7211AIDBVRG4
TLV7211AIDBVRG4
Texas Instruments
Comparator ICs CMOS
Data Sheet
0-2070: $0.35
2070-3000: $0.32
3000-6000: $0.31
6000-12000: $0.30
