Product Summary

The TLC7524ED is a COMS, 8-bit, digital-to-analog converter (DAC) designed for easy interface to most popular microprocessors. The devices of the TLC7524ED are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. The TLC7524ED is characterized for operation from 0℃ to 70℃.

Parametrics

TLC7524ED absolute maximum ratings: (1)Supply voltage range, VDD: 0.3V to 16.5V; (2)Digital input voltage range, VI: 0.3V to VDD + 0.3V; (3)Reference voltage, Vref: ±25V; (4)Peak digital input current, II: 10μA; (5)Operating free-air temperature range, TA: 0℃ to +70℃; (6)Storage temperature range, Tstg: 65℃ to +150℃; (7)Case temperature for 10 seconds, TC: FN package: +260℃; (8)Lead temperature 1,6mm (1/16 inch) from case for 10 seconds: D, N, or PW package: +260℃.

Features

TLC7524ED features: (1)Easily Interfaced to Microprocessors; (2)On-Chip Data Latches; (3)Monotonic Over the Entire A/D Conversion Range; (4)Segmented High-Order Bits Ensure Low-Glitch Output; (5)Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524; (6)Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320; (7)CMOS Technology.

Diagrams

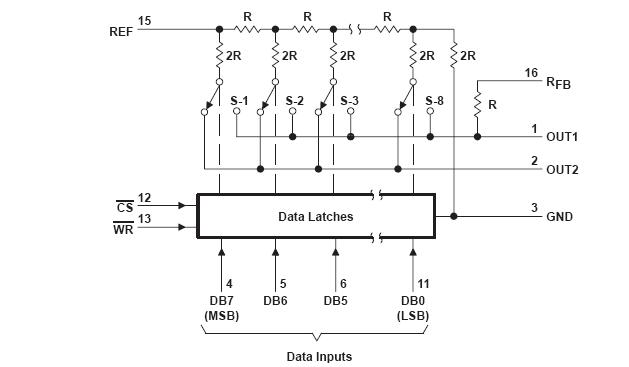

TLC7524ED block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC7524ED
TLC7524ED
Texas Instruments
DAC (D/A Converters) 8bit .1us MDAC
Data Sheet
0-1: $2.81
1-25: $2.56
25-100: $2.09
100-250: $1.74
TLC7524EDG4
TLC7524EDG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input
Data Sheet
0-1: $2.51
1-25: $2.28
25-100: $2.09
100-250: $1.52
TLC7524EDR
TLC7524EDR
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input
Data Sheet
0-1850: $1.31
1850-2000: $1.27
2000-2500: $1.27
2500-5000: $1.21
TLC7524EDRG4
TLC7524EDRG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input
Data Sheet
0-1850: $1.31
1850-2000: $1.27
2000-2500: $1.27
2500-5000: $1.21
