Product Summary
The TL3116IDR is an ultra-fast comparator designed to interface directly to TTL logic while operating from either a single 5-V power supply or dual ±5V supplies. The input common-mode voltage extends to the negative rail for ground sensing applications. The TL3116IDR features extremely tight offset voltage and high gain for precision applications. It has complementary outputs that can be latched using the latch enable terminal. The TL3116IDR only requires 12.7mA (typical) to achieve a propagation delay of 10 ns.
Parametrics
TL3116IDR absolute maximum ratings: (1)Supply voltage, VDD (see Note 1): -7V to 7V; (2)Differential input voltage, VID (see Note 2): 7V; (3)Input voltage range, VI: 7V; (4)Input voltage, VI (LATCH ENABLE): 7V; (5)Output current, IO:±20mA; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: -40℃ to 85℃; (8)Storage temperature range, Tstg: -65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TL3116IDR features: (1)Ultra-Fast Operation: 10ns (typ); (2)Low Positive Supply Current: 12.7mA (Typ); (3)Operates From a Single 5-V Supply or From a Split ±5-V Supply; (4)Complementary Outputs; (5)Input Common-Mode Voltage Includes Negative Rail; (6)Low Offset Voltage; (7)No Minimum Slew Rate Requirement; (8)Output Latch Capability; (9)Functional Replacement to the LT1116.

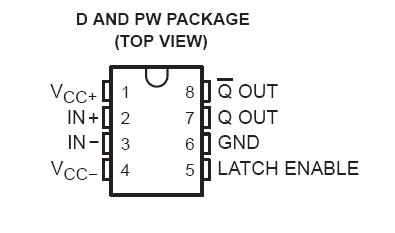

Diagrams
