SN74LVTH16245ADGG

Product Summary

The SN74LVTH16245ADGG is a 3.3V ABT 16-bit bus transceiver with 3-state outputs. The SN74LVTH16245ADGG is designed for low-voltage (3.3V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The SN74LVTH16245ADGG is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

Parametrics

SN74LVTH16245ADGG absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 4.6V; (2)VI Input voltage range(2): –0.5 to 7V; (3)VO Voltage range applied to any output in the high-impedance or power-off state(2): –0.5 to 7 V; (4)VO Voltage range applied to any output in the high state(2): –0.5 VCC + 0.5V; (5)IO Current into any output in the low state: 128mA; (6)IO Current into any output in the high state: 64mA; (7)IIK Input clamp current VI ＜ 0: –50mA; (8)IOK Output clamp current VO ＜ 0:–50mA; (9)θJA Package thermal impedance: 70℃/W; (10)Tstg Storage temperature range –65 to 150℃.

Features

SN74LVTH16245ADGG features: (1)Members of the Texas Instruments Widebus Family; (2)State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3V Operation and Low Static-Power Dissipation; (3)Support Mixed-Mode Signal Operation (5V Input and Output Voltages With 3.3V VCC); (4)Support Unregulated Battery Operation Down to 2.7 V; (5)Typical VOLP (Output Ground Bounce)＜0.8 V at VCC = 3.3 V, TA = 25℃; (6)Distributed VCC and GND Pins Minimize High-Speed Switching Noise; (7)Flow-Through Architecture Optimizes PCB Layout; (8)Ioff and Power-Up 3-State Support Hot Insertion; (9)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (10)Latch-Up Performance Exceeds 500mA Per JESD 17; (11)ESD Protection Exceeds JESD 22.

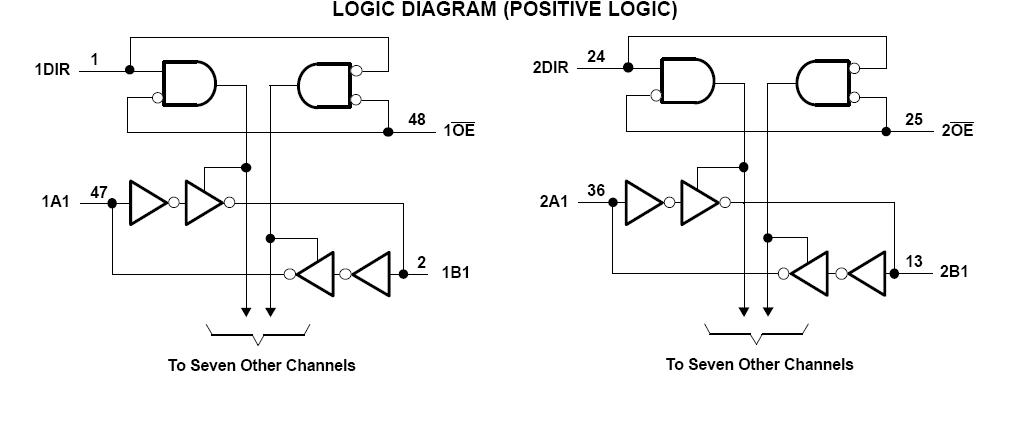

Diagrams
