SN74LVC16374ADGGR

SN74LVC16374ADGGR, 16-bit, edge-triggered D-type flip-flop, TSSOP, -0.5V to 6.5V, ±50mA, ±100mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	0.80 / Piece

PartNumber:: SN74LVC16374ADGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:SN74LVC16374ADGGR
US $0.80 - 0.80
Quantity:

piece

Product Summary

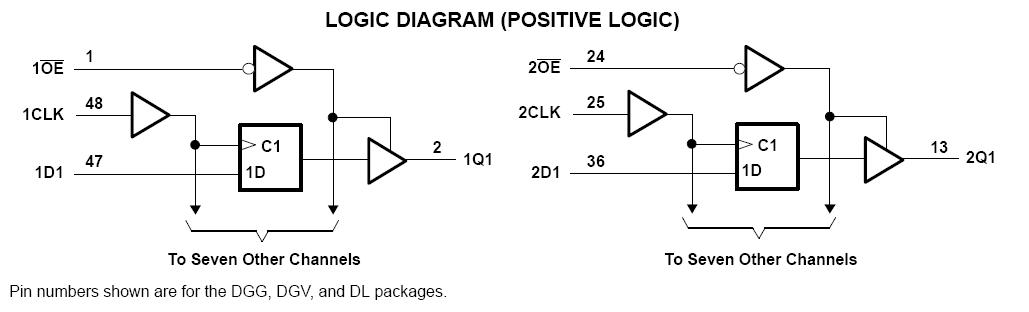

The SN74LVC16374ADGGR is a 16-bit edge-triggered D-type flip-flop with 3-state outputs. It is designed for 1.65V to 3.6V VCC operation. The SN74LVC16374ADGGR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The SN74LVC16374ADGGR can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up at the data (D) inputs.

Parametrics

SN74LVC16374ADGGR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range(2): –0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state(2): –0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state(2) (3): –0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI ＜ 0:–50mA; (6)IOK Output clamp current VO ＜ 0: –50mA; (7)IO Continuous output current ±50mA; (8)Continuous current through each VCC or GND: ±100mA; (9)Package thermal impedance: 70℃/W; (10)Tstg Storage temperature range: –65 to 150℃.

Features

SN74LVC16374ADGGR features: (1)Member of the Texas Instruments Widebus. Family; (2)Typical VOLP (Output Ground Bounce)＜0.8 V at VCC = 3.3 V, TA = 25℃; (3)Typical VOHV (Output VOH Undershoot)＞2 V at VCC = 3.3 V, TA = 25℃; (4)Ioff Supports Partial-Power-Down Mode Operation; (5)Supports Mixed-Mode Signal Operation on All Ports (5-V Input and Output Voltages With 3.3V VCC); (6)Latch-Up Performance Exceeds 250mA Per JESD 17; (7)ESD Protection Exceeds JESD 22.
