Product Summary
The SN74F125DR is a quadruple bus buffer gate with 3-state outputs. The SN74F125DR features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.
Parametrics
SN74F125DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI (see Note 1): –1.2 V to 7 V; (3)Input current range:–30mA to 5mA; (4)Voltage range applied to any output in the disabled or power-off state:–0.5 V to 5.5 V; (5)Voltage range applied to any output in the high state: 128mA; (6)Current into any output in the low state: ±70mA; (7)Package thermal impedance, θJA (see Note 2): D package: 86℃/W; (8)DB package: 96℃/W; (9)N package: 80℃/W; (10)NS package: 76℃/W; (11)Storage temperature range, Tstg:–65℃ to 150℃.
Features
SN74F125DR feature: (1)3-State Outputs Drive Bus Lines or Buffer Memory Address Registers.

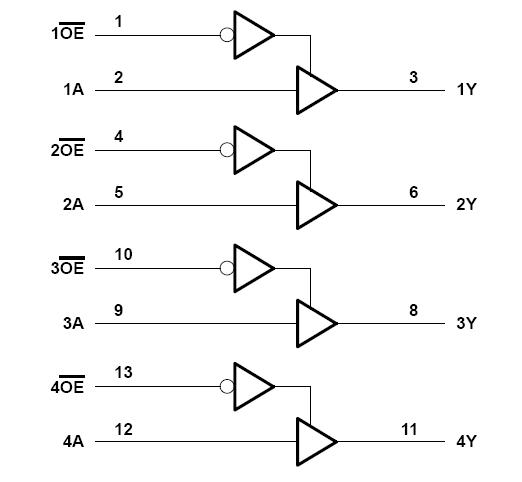

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74F125DR |
Texas Instruments |
Buffers & Line Drivers Tri-State Quad Bus |
Data Sheet |
|
|
||||||||||||
|
SN74F125DRE4 |
Texas Instruments |
Buffers & Line Drivers Quad Bus Buffer Gate With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74F125DRG4 |
Texas Instruments |
Buffers & Line Drivers QUADBusBuffer Gate |
Data Sheet |
|
|
||||||||||||
