MSP430F2618TPMR

Product Summary

The MSP430F2618TPMR is an ultralow-power microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F2618TPMR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1μs. Typical applications of the MSP430F2618TPMR include sensor systems, industrial control applications, hand-held meters, etc. The 12x12mm LQFP-64 package is also available as a non-magnetic package for medical imaging applications.

Parametrics

MSP430F2618TPMR absolute maximum ratings of are (1)Voltage applied at VCC to VSS: -0.3 V to 4.1V; (2)Voltage applied to any pin(2): -0.3 V to VCC + 0.3V; (3)Diode current at any device terminal: ±2mA; (4)Unprogrammed device: -55℃ to 150℃; (5)Tstg Storage temperature(3) Programmed device: -55℃ to 150℃.

Features

MSP430F2618TPMR features: (1)Low Supply Voltage Range 1.8V to 3.6V; (2)Ultra-Low Power Consumption; (3)Wake-Up From Standby Mode in Less Than 1μs; (4)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (5)Three-Channel Internal DMA; (6)12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature; (7)Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization; (8)16-Bit Timer_A With Three Capture/Compare Registers; (9)16-Bit Timer_B With Seven Capture/Compare With-Shadow Registers; (10)On-Chip Comparator; (11)Four Universal Serial Communication Interfaces (USCIs); (12)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (13)Brownout Detector; (14)Bootstrap Loader; (15)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse.

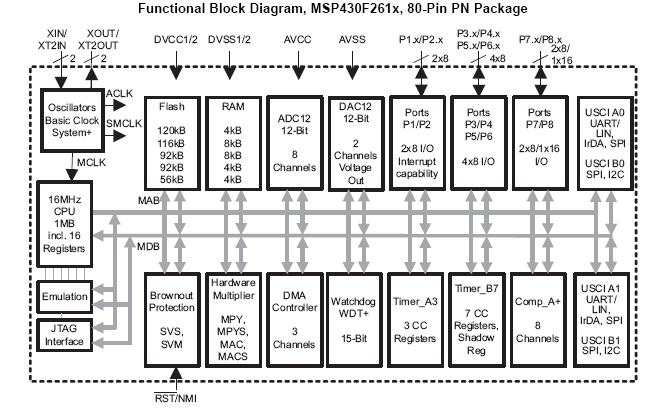

Diagrams
