Product Summary

The MP2259DJ-LF-Z is a monolithic non-synchronous step-down switch mode converter with an integrated power MOSFET. The MP2259DJ-LF-Z achieves 1.2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The MP2259DJ-LF-Z is available in TSOT23-6 and SOT23-6 packages. The applications of MP2259DJ-LF-Z are: Cable Set-Top Box/Digital Video Recorders, xDSL Modems/Routers, Pre-Regulator for Linear Regulators.

Parametrics

MP2259DJ-LF-Z absolute maximum ratings: (1)Cable Set-Top Box/Digital Video Recorders; (2)xDSL Modems/Routers; (3)Pre-Regulator for Linear Regulators.

Features

MP2259DJ-LF-Z features: (1)1.2A Output Current; (2)Wide 4.5V to 24V Operating Input Range; (3)Output Adjustable from 0.8V to 15V; (4)Fully Assembled and Tested.

Diagrams

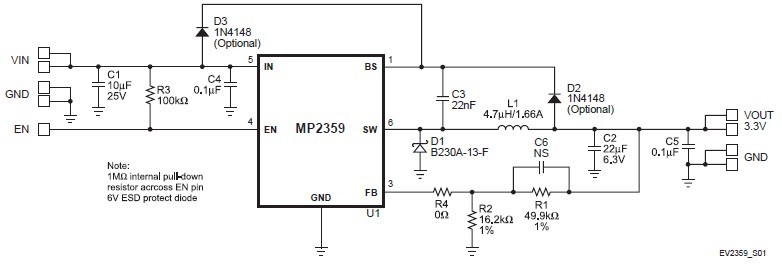

MP2259DJ-LF-Z block diagram
