Product Summary

The MAX9947ETE+T is an AISG-compliant, fully integrated transceiver. The MAX9947ETE+T offers a typical dynamic range of 20dB and integrates a bandpass filter that operates in the 2.176MHz frequency with a narrow 200 kHz bandwidth. The applications of the MAX9947ETE+T include Base Stations and Tower Equipment.

Features

MAX9947ETE+T features: (1)Receiver wide input dynamic range -15dBm to +5dBm in 50Ω; (2)Variable Transmitter Output level from +7dBm to +12dBm; (3)AISG-Compliant Output Emission Profile; (4)AutoDirection Output; (5)No Need of Microcontrollers to Handle Bus Arbitration in Tower-Mounted Equipment; (6)Supports All AISG Data Rates; (7)Bandpass Filter Compliant with AISG Protocal Centered Around 2.176MHz; (8)3.0V to 5.5V Voltage Supply; (9)Independent Logic Supply; (10)Small, 3mm×3mm 16-Pin TQFN package.

Diagrams

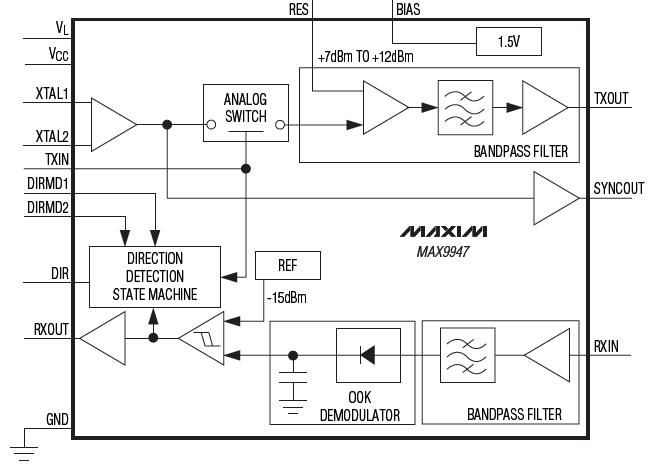

MAX9947ETE+T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX9947ETE+T
MAX9947ETE+T
Maxim Integrated Products
RF Transceiver AISG Interface
Data Sheet
0-2080: $3.03
2080-2500: $3.03
