Product Summary

The LQM2HPN2R2MG0L is a Chip Inductor/Power Inductor.

Parametrics

LQM2HPN2R2MG0L absolute maximum ratings: (1)Inductance: 2.2μH ±30%; (2)Rated Current: 800mA; (3)DC Resistance: 0.23ohm ±25%; (4)Self Resonance Frequency (min.): 40MHz; (5) Operating Temperature Range: -55 to +125℃.

Diagrams

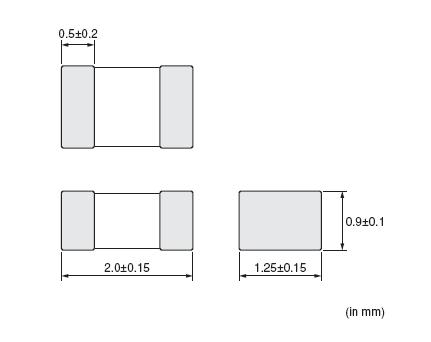

LQM2HPN2R2MG0L dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQM2HPN2R2MG0L
LQM2HPN2R2MG0L
Murata
Power Inductors 1008 2.2uH 20%
Data Sheet
0-1: $0.17
1-50: $0.13
50-100: $0.12
100-500: $0.11
