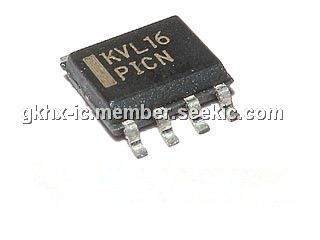

Product Summary

The KVL16 is a low voltage differential receiver. The KVL16 contains an internally supplied voltage source, VBB. When used in a single ended input condition the unused input must be tied to VBB. When operating in this mode use a 0.01μF capacitor to decouple VBB and VCC and also limit the current sinking or sourcing capability to 0.5mA. When VBB is not used it should be left open. With inputs open the differential Q outputs default LOW and Q outputs default HIGH. The KVL16 is temperature compensated.

Parametrics

KVL16 absolute maximum ratings: (1)PECL Supply Voltage (VCC) VEE = 0V: 0V to +8.0V; (2)NECL Supply Voltage (VEE) VCC = 0V: 0V to .8.0V; (3)PECL DC Input Voltage (VI) VEE = 0V: 0V to +6.0V; (4)NECL DC Input Voltage (VI) VCC = 0V: 0V to .6.0V; (5)DC Output Current (IOUT) Continuous: 50mA; (6)Surge: 100mA; (7)VBB Sink/Source Current (IBB): ±0.5mA; (8)Storage Temperature (TSTG): -65℃ to +150℃.

Features

KVL16 features: (1)Typical propagation delay of 300ps; (2)Typical IEE of 17mA; (3)Internal pull-down resistors on D; (4)Fairchild MSOP-8 package is a drop-in replacement to ON TSSOP-8; (5)Meets or exceeds JEDEC specification EIA/JESD78 IC latch-up test; (6)Moisture Sensitivity Level 1; (7)ESD Performance: Human Body Model ＞2000V; (8)Machine Model ＞150V.

Diagrams

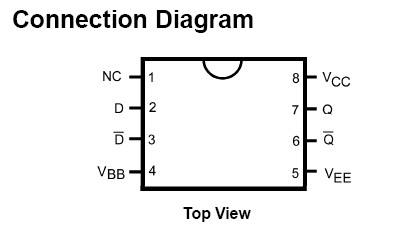

KVL16 Pin Configuration
