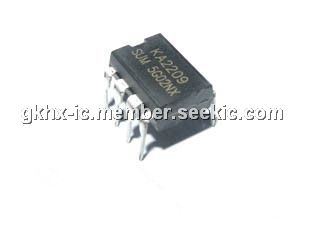

The KA2209 is a monolithic integrated audio amplifier in an 8-pin plastic dual in line package. It is designed for portable cassette players and radios.
Parametrics
KA2209 absolute maximum ratings: (1)Supply Voltage: 15V; (2)Output Peak Current: 1A; (3)Power Dissipation: 1.0W @ TAMB = 50℃, 1.4W @ TCASE = 50℃; (4)Operating Temperature: -20 to +70℃; (5)Storage Temperature: -40 to +150℃.
Features
KA2209 features: (1)Wide operating supply voltage: VCC=1.8V to 9V; (2)Low crossover distortion; (3)Low quiescent circuit current; (4)Bridge/stereo configuration.
