Product Summary

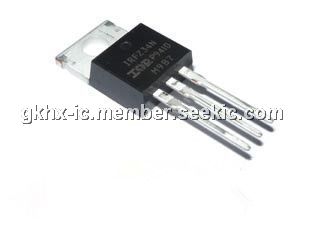

The IRFZ34N is a HEXFET Power MOSFET. The IRFZ34N is a Fifth Generation HEXFET from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRFZ34N is well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Parametrics
IRFZ34N absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 29A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 20A; (3)Pulsed Drain Current, IDM: 100A; (4)PD @TC = 25℃, Power Dissipation: 68 W; (5)Linear Derating Factor: 0.45 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Single Pulse Avalanche Energy, EAS: 65mJ; (8)Avalanche Current, IAR: 16 A; (9)Repetitive Avalanche Energy, EAR: 6.8mJ; (10)Peak Diode Recovery dv/dt, dv/dt: 5.0 V/ns; (11)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +175℃; (12)Soldering Temperature, for 10 seconds 300℃ (1.6mm from case ); (13)Mounting torque, 6-32 or M3 srew: 10 lbf•in (1.1N•m).
Features
IRFZ34N features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Ease of Paralleling; (7)Lead-Free.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFZ34N |
International Rectifier |
MOSFET MOSFET, 55V, 26A, 40 mOhm, 22.7 nC Qg, TO-220AB |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRFZ34NL |
|
MOSFET N-CH 55V 29A TO-262 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
IRFZ34NPBF |
International Rectifier |
MOSFET MOSFT 55V 26A 40mOhm 22.7nC |
Data Sheet |
|
|
||||||||||||
|
IRFZ34NLPBF |
International Rectifier |
MOSFET MOSFT 55V 29A 40mOhm 22.7nC |
Data Sheet |
|
|
||||||||||||
|
IRFZ34NSPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
 |
IRFZ34NS |
|
MOSFET N-CH 55V 29A D2PAK |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRFZ34NSTRLPBF |
International Rectifier |
MOSFET MOSFT 55V 29A 40mOhm 22.7nC |
Data Sheet |
|
|
||||||||||||
|
IRFZ34NSTRRPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
