IRF9540NS

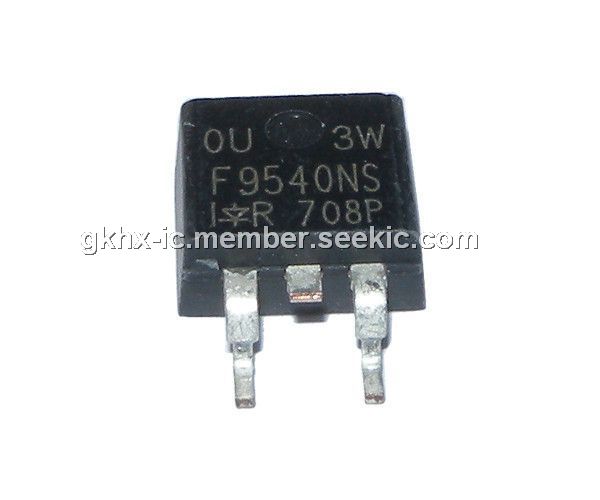

IRF9540NS, HEXFET power MOSFET, SOP, -100V, -23A, 430mJ, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: IRF9540NS

Brand:: International Rectifier - IR | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-07

From Other Seller

Part Number:IRF9540NS
US $0.01 - 6.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF9540NS is a Fifth Generation HEXFET from International Rectifier. The IRF9540NS utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF9540NS is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2Pak is suitablefor high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typical surface mount application.

Parametrics

IRF9540NS absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ -10V: -23 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ -10V: -16 A; (3)Pulsed Drain Current, IDM: -76 A; (4)PD @TA = 25℃ Power Dissipation: 3.8 W; (5)PD @TC = 25℃ Power Dissipation: 140 W; (6)Linear Derating Factor: 0.91W/℃; (7)Gate-to-Source Voltage, VGS: ±20 V; (8)Single Pulse Avalanche Energy, EAS: 430 mJ; (9)Avalanche Current, IAR: -11 A; (10)Repetitive Avalanche Energy, EAR: 14 mJ; (11)Peak Diode Recovery dv/dt, dv/dt: -5.0 V/ns; (12)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +175℃; (13)Soldering Temperature, for 10 seconds 300 (1.6mm from case)℃.

Features

IRF9540NS features: (1)Advanced Process Technology; (2)Surface Mount (IRF9540S); (3)Low-profile through-hole (IRF9540L); (4)175℃ Operating Temperature; (5)Fast Switching; (6)P-Channel; (7)Fully Avalanche Rated.
