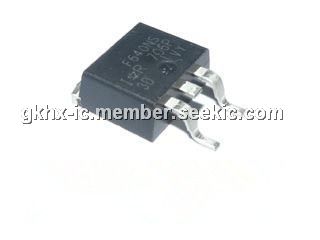

IRF640NS

HEXFET Power MOSFET, 200V, 18A, SOP, 0.15Ω, IRF640NS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: IRF640NS

Brand:: International Rectifier - IR | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-07

From Other Seller

Part Number:IRF640NS
US $0.01 - 6.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF640NS is a HEXFET Power MOSFET. It utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The IRF640NS provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The IRF640NS is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typical surface mount application.

Parametrics

IRF640NS absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 18 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 13 A; (3)IDM, Pulsed Drain Current: 72 A; (4)PD @TC = 25℃, Power Dissipation: 150 W; (5)Linear Derating Factor: 1.0 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)EAS Single Pulse Avalanche Energy: 247 mJ; (8)IAR Avalanche Current: 18 A; (9)EAR Repetitive Avalanche Energy: 15 mJ; (10)dv/dt Peak Diode Recovery: 8.1V/ns; (11)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to 175℃; (12)Soldering Temperature for 10 seconds: 300℃; (13)Mounting Torque, 6-32 or M3 Screw: 10lb·in (1.1N·m).

Features

IRF640NS features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements.
