IMP708TESA

Product Summary

The IMP708TESA is a 3/3.3/4.0V μP Supervisor Circuit. The IMP708TESA monitors power-supply and battery voltage level, and μP/μC operation. A reset is generated when the supply drops below 3.08V. The IMP708TESA offers several functional options. Each device generates a reset signal during power-up, power-down and during brownout conditions. The applications of the IMP708TESA include Computers and controllers, CTI applications, embedded controllers, Battery operated systems, Intelligent instruments, Wireless communication systems, PDAs and handheld equipment.

Parametrics

IMP708TESA absolute maximum ratings: (1)VCC:–0.3V to 6.0V; (2)All other inputs: –0.3V to (VCC + 0.3V); (3)Input Current at VCC and GND: 20mA; (4)Output Current: All outputs: 20mA; (5)Rate of Rise at VCC: 100V/μs; (6)Plastic DIP Power Dissipation: 700mW (Derate 9mW/℃ above 70℃); (7)SO Power Dissipation: 470mW (Derate 5.9mW/℃ above 70℃); (8)MicroSO Power Dissipation: 330mW (Derate 4.1mW/℃ above 70℃); (9)IMP706xE, IMP708xE: –40℃ to +85℃; (10)IMP706xC, IMP708xC: 0℃ to +70℃; (11)Storage Temperature Range: –65℃ to +160℃; (12)Lead Temperature Soldering (10 sec): 300℃.

Features

IMP708TESA features: (1)Lower power, pin compatible replacements for Maxim MAX706P/R/S/T, MAX708R/S/T; (2)30% lower supply current:140μA vs. 200μA; (3)Precision power supply monitor; (4)2.63V threshold (IMP706P/R, IMP708R); (5)2.93V threshold (IMP706S, IMP708S); (6)3.08V threshold (IMP706T, IMP708T); (7)New 4.00V threshold (IMP706J, IMP708J); (8)Debounced manual reset input; (9)Auxiliary voltage monitor comparator; (10)1.25V threshold; (11)Battery monitor/auxiliary supply monitor; (12)Watchdog timer (IMP706P/R/S/T/J); (13)Watchdog can be disabled by floating WDI; (14)200ms reset time delay; (15)Three reset signal options; (16)Active HIGH: IMP706P; (17)Active LOW: IMP706R/S/T/J; (18)Active HIGH & LOW outputs: IMP708R/S/T/J; (19)DIP, SO and MicroSO packages; (20)Guaranteed RESET assertion to VCC = 1.1V.

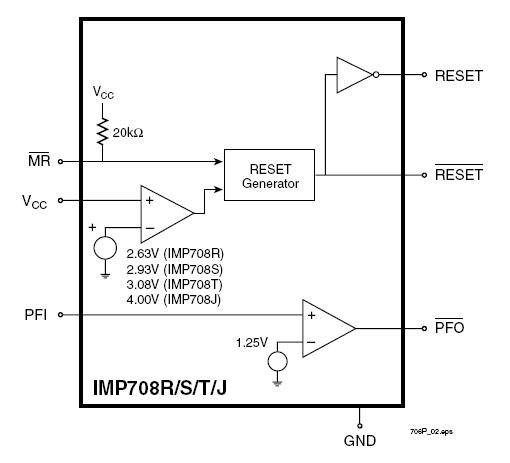

Diagrams
