Product Summary
The HY62256ALR-70 is a high-speed, low power and 32,786 x 8-bits CMOS Static Random Access Memory fabricated using Hyundai’s high performance CMOS process technology. The HY62256ALR-70 has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0 volt. Using the CMOS technology, supply voltages from 2.0 to 5.5 volt has little effect on supply current in the data retention mode. The HY62256ALR-70 is suitable for use in low voltage operation and battery back-up application.
Parametrics
HY62256ALR-70 absolute maximum ratings: (1)VCC VIN VOUT Power Supply Input/Output Voltage: -0.5 to 7.0V; (2)TA Operating Temperature: -40 to 85℃; (3)TSTG Storage Temperature: -65 to 150℃; (4)PD Power Dissipation: 1.0W; (5)IOUT Data OutPut Current: 50mA; (6)TSOLDER Lead Soldering Temperature & Time: 260/10 ℃/sec.
Features
HY62256ALR-70 features: (1)Fully static operation and Tri-state outputs; (2)TTL compatible inputs and outputs; (3)Low power consumption: -2.0V(min.) data retention; (4)Standard pin configuration: 28 pin 600 mil PDIP; 28 pin 330 mil SOP; 28 pin 8x13.4 mm TSOP-1 (standard and reversed).

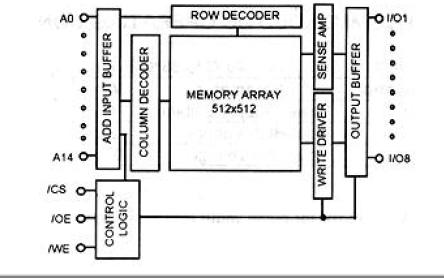

Diagrams
