FMS6502MTC24X

FMS6502MTC24X, 8-Input, 6-Output, Video Switch Matrix, TSOP, -0.3V to 6V, 40mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~1.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
2000 ~ 2500 :	1.70 / Piece

PartNumber:: FMS6502MTC24X

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-16

From Other Seller

Part Number:FMS6502MTC24X
US $1.70 - 1.70
Quantity:

piece

Product Summary

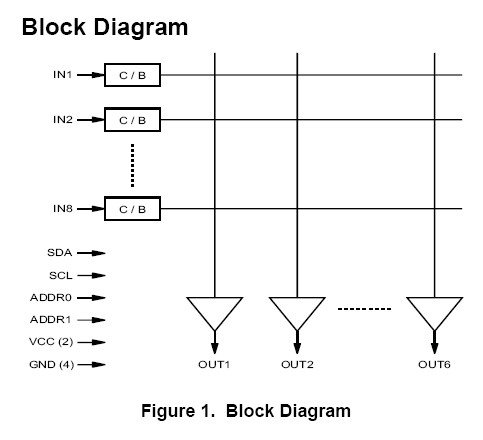

The FMS6502MTC24X is an 8-Input, 6-Output Video Switch Matrix with Output Drivers, Input Clamp, and Bias Circuitry. The FMS6502MTC24X provides eight inputs that can be routed to any of six outputs. Each input can be routed to one or more outputs, but only one input may be routed to any output. The applications of the FMS6502MTC24X include Cable and Satellite Set-Top Boxes, TV and HDTV Sets, A / V Switchers, Personal Video Recorders (PVR), Security and Surveillance, Video Distribution, Automotive (In-Cabin Entertainment).

Parametrics

FMS6502MTC24X absolute maximum ratings: (1)DC Supply Voltage: -0.3 to 6V; (2)Analog and Digital I/O: -0.3 to Vcc + 0.3V; (3)Output Current Any One Channel, Do Not Exceed: 40mA.

Features

FMS6502MTC24X features: (1)8 x 6 Crosspoint Switch Matrix; (2)Supports SD, PS, and HD 1080i / 1080p Video; (3)Input Clamp and Bias Circuitry; (4)Doubly Terminated 75Ω Cable Drivers; (5)Programmable 0dB or 6dB Gain; (6)AC- or DC-Coupled Inputs; (7)AC- or DC-Coupled Outputs; (8)One-to-One or One-to-Many Input-to-Output Switching; (9)I2CTM-Compatible Digital Interface, Standard Mode; (10)3.3V or 5V Single Supply Operation; (11)Pb-Free TSSOP-24 Package.
