FMS6501MSA28X

FMS6501MSA28X, Video Switch Matrix, TSSOP, -0.3 to 6 V, 40mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~2.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 2000 :	2.90 / Piece

PartNumber:: FMS6501MSA28X

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-16

From Other Seller

Part Number:FMS6501MSA28X
US $2.90 - 2.90
Quantity:

piece

Product Summary

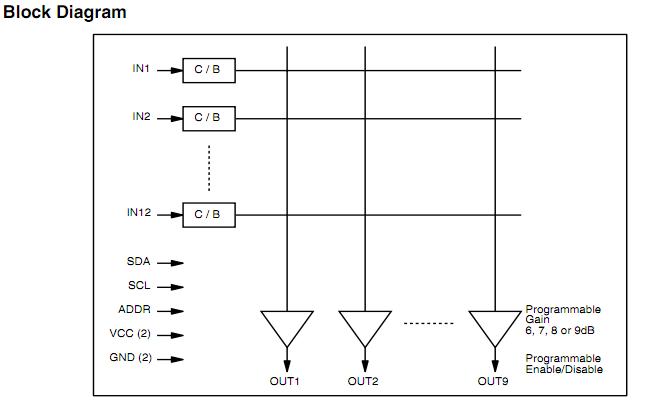

The FMS6501MSA28X is a 12 Input 9 Output Video Switch Matrix with Input Clamp, Input Bias Circuitry, and Output Drivers. The FMS6501MSA28X provides 12 inputs which can be routed to any of 9 outputs. Each input can be routed to one or more outputs but only one input may be routed to any output. The input to output routing is controlled via an I2C compatible digital interface. The applications of the FMS6501MSA28X include Cable and Satellite set top boxes, TV and HDTV Sets, A/V Switchers Personal Video Recorders (PVR), Security / Surveillance, Video Distribution and Automotive (In-Cabin Entertainment).

Parametrics

FMS6501MSA28X absolute maximum ratings: (1)DC Supply Voltage: -0.3 to 6 V; (2)Analog and Digital I/O: -0.3 to Vcc + 0.3 V; (3)Output Current Any One Channel, Do Not Exceed: 40 mA.

Features

FMS6501MSA28X features: (1)12 × 9 Crosspoint Matrix; (2)Supports SD, PS, and HD 1080i/1080p Video; (3)Input Clamp / Bias Circuitry; (4)AC or DC-Coupled Inputs; (5)AC or DC-Coupled Outputs; (6)Dual Load(75Ω) Output Drivers with High Impedance Disable; (7)One-to-One or One-to-Many Input to Output Switching; (8)Programmable Gain: +6, +7, +8 or +9dB; (9)I2CTM Compatible Digital Interface, Standard Mode; (10)3.3V or 5V single supply operation; (11)Lead (Pb) Free SSOP-28 Package.
