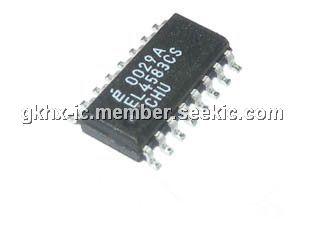

EL4583CS

EL4583CS, Sync Separator, SOP, 7V, 4mA, 800mV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: EL4583CS

Brand:: ELM Electronics - ELM | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-10

From Other Seller

Part Number:EL4583CS
US $0.01 - 6.00
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
TLP250

US $0.90 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EL4583CS is a Sync Separator. The EL4583CS extracts timing from video sync in NTSC, PAL, and SECAM systems, and non standard formats, or from computer graphics operating at higher scan rates. Timing adjustment is via an external resistor. Input without valid vertical interval (no serration pulses) produces a default vertical output. The applications of the EL4583CS include Video special effects, Video test equipment, Video distribution, Multimedia, Displays, Imaging, Video data capture, Video triggers.

Parametrics

EL4583CS absolute maximum ratings: (1)VCC Supply: 7V; (2)Storage Temperature: -65℃ to +150℃; (3)Pin Voltages: -0.5V to VCC +0.5V; (4)Operating Temperature Range: -40℃ to +85℃; (5)Power Dissipation: See Curves; (6)Die Junction Temperature: 150℃.

Features

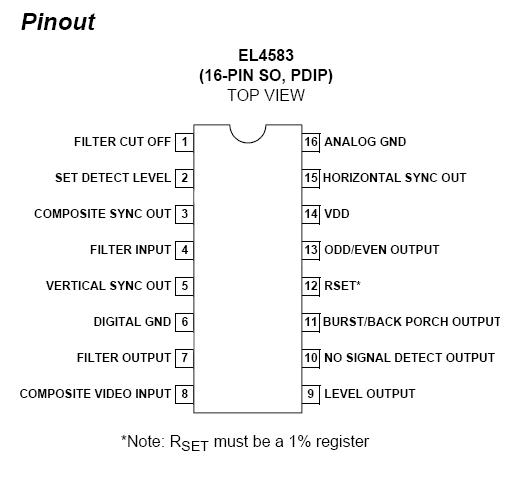

EL4583CS features: (1)NTSC, PAL, and SECAM sync separation; (2)Single supply, +5V operation; (3)Precision 50% slicing; (4)Built-in programmable color burst filter; (5)Decodes non-standard vertical; (6)Horizontal sync output; (7)Sync. pulse amplitude output; (8)Same socket can be used for 8-pin EL4581; (9)Low-power CMOS; (10)Detects loss of signal; (11)Resistor programmable scan rate; (12)Few external components; (13)Available in 16-pin PDIP and 16-pin SO (0.150" packages; (14)Pb-Free Plus Anneal Available (RoHS Compliant).
