Product Summary
The CD74ACT74QM96Q1 is a D-type flip-flop.
Parametrics
CD74ACT74QM96Q1 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6 V; (2)Input clamp current, IIK (VI＜0 or VI＞VCC) (see Note 1): ±20mA; (3)Output clamp current, IOK (VO＜0 or VO＞VCC) (see Note 1): ±50mA; (4)Continuous output current, IO (VO = 0 to VCC): ±50mA; (5)Continuous current through VCC or GND: ±100mA; (6)Package thermal impedance, θJA (see Note 2): 86℃/W; (7)Storage temperature range, Tstg: -65 to 150℃.
Features
CD74ACT74QM96Q1 features: (1)Qualified for Automotive Applications; (2)Inputs Are TTL-Voltage Compatible; (3)Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption; (4)Balanced Propagation Delays; (5)±24mA Output Drive Current: Fanout to 15 F Devices; (6)SCR-Latch up-Resistant CMOS Process and Circuit Design.

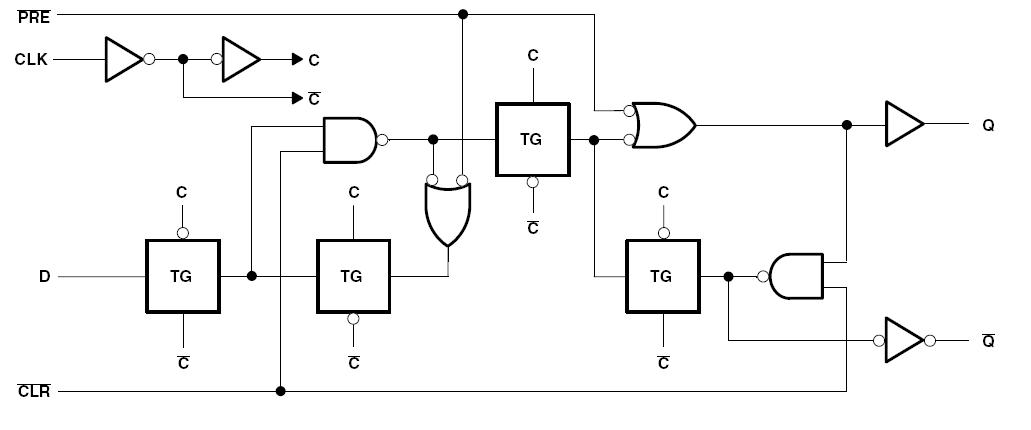

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74ACT74QM96Q1 |
Texas Instruments |
Flip Flops Hi Sp CMOS Dual Pos D Type Flip Flop |
Data Sheet |
Negotiable |
|
||||||||||||
