Product Summary

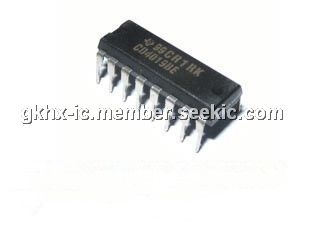

The CD4019BE is a CMOS Quad AND/OR Select Gate. It consists of four AND/OR select gate configurations, each consisting of two 2-input AND gates driving a single 2-input OR gate. The CD4019BE is supplied in 16-lead dual-in-line plastic packages. The applications of the CD4019BE include AND-OR select gating, shift-right/shift-left registers, true/complement selection, AND/OR/Exclusive-OR selection.

Parametrics

CD4019BE absolute maximum ratings: (1)DC supply voltage range: -0.5V to +20V; (2)Input voltage range, all inputs: -0.5V to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)Power Dissipation per package: 500mW; (5)Device dissipation per output transistor: 100mW; (6)Operating temperature range: -55℃ to +125℃; (7)Storage Temperature range: -65℃ to +150℃; (8)Lead temperature: 265℃.

Features

CD4019BE features: (1)Medium speed operation; (2)Standardized, symmetrical output characteristics; (3)100% tested for quiescent current at 20V; (4)Maximum input current of 1μA at 18V over full package temperature range: 100nA at 18V and 25℃; (5) Noise margin; (6) 5V, 10V and 15V parametric ratings.

Diagrams

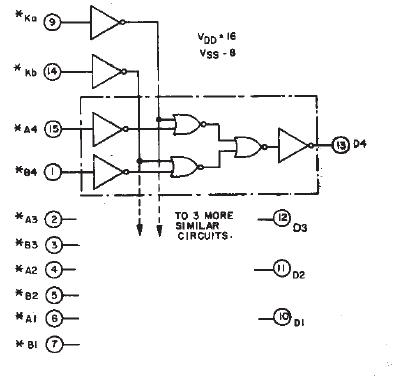

CD4019BE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD4019BE
CD4019BE
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad AND/OR
Data Sheet
0-1: $0.27
1-25: $0.23
25-100: $0.17
100-250: $0.17
CD4019BEE4
CD4019BEE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad AND/OR
Data Sheet
0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.13
