Product Summary
The CD4015 is a CMOS dual 4-stage static shift register. It consists of two identical, independent; 4-stage serial-input/parallel output registers. The CD4015 is supplied in 16-lead hermetic dual-in-line ceramic package, 16-lead dual-in-line plastic package, 16-lead small-outline package, and 16-lead thin shrink small=outline packages. The applications of the CD4015 include serial-input/parallel-output data queueing, serial to parallel data conversion and general purpose register.
Parametrics
CD4015 absolute maximum ratings: (1)voltages referenced to VSS terminal: -0.5V to +20V; (2)input voltage range, all inputs: -0.5V to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)power dissipation per package (PD), for TA=-55℃ to +100℃: 500mW; for TA=+100℃ to +125℃: derate linearity at 12mW/℃ to 220mW; (5)device dissipation per output transistor, for TA=full package-temperature range (all package types): 100mW; (6)operating-temperature range (TA): -55 to +125℃; (7)storage temperature range, Tstg: -85 to +150℃; (8)lead temperature, during soldering:, at distance 1/16±1/32 inch (1.59±0.79mm) from case for 10s max: +265℃.
Features
CD4015 features: (1)medium speed operation: 12MHz typ clock rate at VDD-VSS=10V; (2)fully static operation; (3)8 master-slave flip-flops plus input and output buffering; (4)100% tested for quiescent current at 20V; (5)5V, 10V, and 15V parametric ratings; (6)standardized, symmetrical output characteristics; (7)maximum input current of 1μA at 18V over full package-temperature range; (8)noise margin (full package-temperature range)=1V at VDD=5V; 2V at VD=10V; 2.5V at VDD=15V; (9)meets all requirements of JEDEC tentative standard No.13, standard specifications for description of B series CMOS devices.

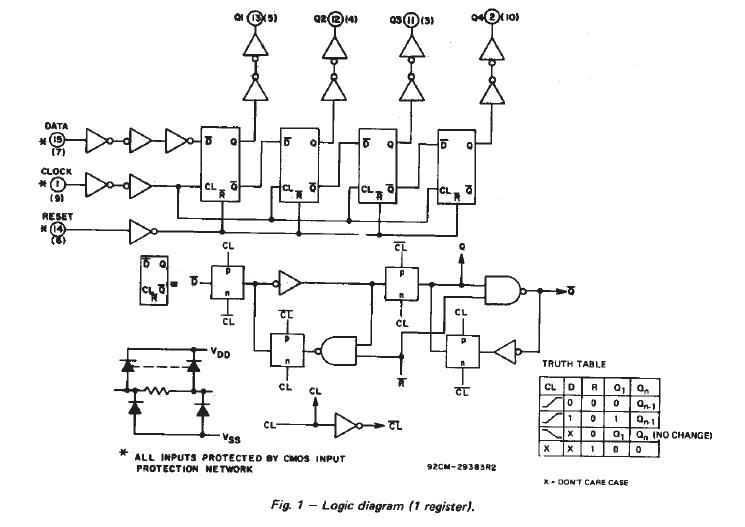

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4015B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4015BC |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
CD4015BCM |
Fairchild Semiconductor |
Counter Shift Registers Dl 4-Bit Shift Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4015BCMX |
Fairchild Semiconductor |
Counter Shift Registers Dl 4-Bit Shift Reg |
Data Sheet |
Negotiable |
|
||||||||||||
 |
CD4015BCN |
Fairchild Semiconductor |
Counter Shift Registers Dl 4-Bit Shift Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4015BE |
Texas Instruments |
Counter Shift Registers Dual 4-Stage Static |
Data Sheet |
|
|
||||||||||||
|
CD4015BEE4 |
Texas Instruments |
Counter Shift Registers Dual 4-Stage Static |
Data Sheet |
|
|
||||||||||||
 |
CD4015BM |
Texas Instruments |
Counter Shift Registers CMOS Dual 4-Stage Static Shift Reg |
Data Sheet |
|
|
||||||||||||
