Product Summary
The CC1111F32RSPR is a true low-power sub 1 GHz system-on-chip (SoC) designed for lowpower wireless applications. The CC1111F32RSPR combines the excellent performance of the state-of-the-art RF transceiver CC1111F32RSPR with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations. The applications of the CC1111F32RSPR include Low-power SoC wireless applications operating in the 315/433/868/915 MHz ISM/SRD bands, Wireless alarm and security systems, Industrial monitoring and control, Wireless sensor networks, AMR - Automatic Meter Reading, Home and building automation, Low power telemetry.
Parametrics
CC1111F32RSPR absolute maximum ratings: (1)Supply voltage (VDD): -0.3 to 3.9V; (2)Voltage on any digital pin: -0.3 to VDD + 0.3, max 3.9V; (3)Voltage on the pins RF_P, RF_N and DCOUPL: -0.3 to 2.0 V; (4)Voltage ramp-up rate: 120 kV/μs; (5)Input RF level: 10dBm; (6)Storage temperature range: -50 to 150℃; (7)Solder reflow temperature: 260℃.
Features
CC1111F32RSPR features: (1)High-performance RF transceiver based on the market-leading CC1101; (2)Excellent receiver selectivity and blocking performance; (3)High sensitivity (.110; (4)dBm at 1.2 kBaud); (5)Programmable data rate up to 500 kBaud; (6)Programmable output power up to 10 dBm for all supported frequencies; (7)Frequency range: 300 to 348 MHz, 391 to 464 MHz and 782 to 928 MHz; (8)Digital RSSI / LQI support.

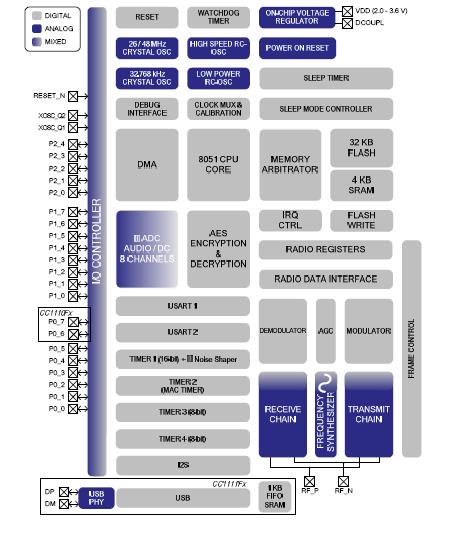

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CC1111F32RSPR |
Texas Instruments |
RF Microcontrollers (MCU) Sub-1G Sys-on-Chip with MCU |
Data Sheet |
|
|
||||||||||
|
CC1111F32RSPRG3 |
Texas Instruments |
RF Microcontrollers (MCU) SoC RF Xceiver |
Data Sheet |
|
|
||||||||||
