Product Summary
The BZX84C4V7 is a 350mW Surface Mount Zener Diode.
Parametrics
BZX84C4V7 absolute maximum ratings: (1)IFRM Repetitive Peak Forward Current (IFRM): 250mA; (2)IZRM Repetitive Peak Working Current (IZRM): 250mA; (3)PD Power Dissipation: 350mW; (4)TSTG Storage Temperature Range: -55 to +150℃; (5)TJ Operating Junction Temperature: + 150℃.
Features
BZX84C4V7 features: (1) Planar die construction; (2)350mW Power dissipation; (3) Zener voltages from 2.7V – 51V; (4) Ideally suited for automated assembly processes.

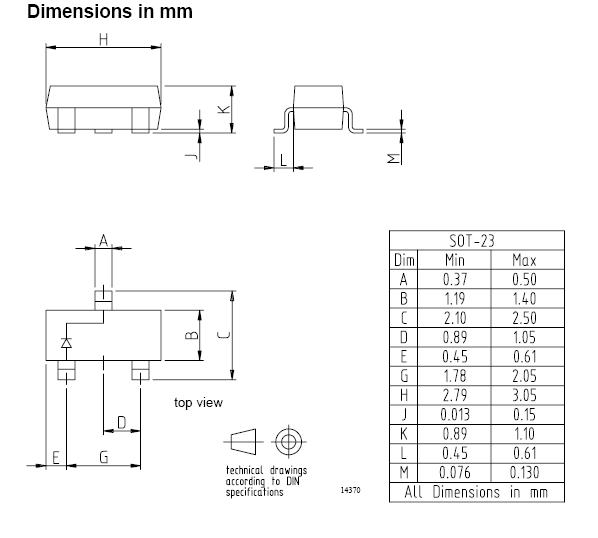

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BZX84C4V7 |
Fairchild Semiconductor |
Zener Diodes 4.7V 0.35W Zener |
Data Sheet |
|
|
||||||||||||
|
BZX84C4V7_D87Z |
Fairchild Semiconductor |
Zener Diodes 4.7V 0.35W Zener |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BZX84C4V7-7-F |
Diodes Inc. |
Zener Diodes 350MW 4.7V |
Data Sheet |
|
|
||||||||||||
|
BZX84C4V7_NL |
Fairchild Semiconductor |
Zener Diodes 4.7V 0.35W Pb-FREE |
Data Sheet |
Negotiable |
|
||||||||||||
|
BZX84C4V7_Q |
Fairchild Semiconductor |
Zener Diodes 4.7V 0.35W Zener |
Data Sheet |
Negotiable |
|
||||||||||||
|
BZX84C4V7-7 |
Diodes Inc. |
Zener Diodes 350MW 4.7V |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BZX84C4V7LT3G |
ON Semiconductor |
Zener Diodes 4.7V 225mW |
Data Sheet |
|
|
||||||||||||
|
BZX84C4V7LT1G |
ON Semiconductor |
Zener Diodes 4.7V 225mW |
Data Sheet |
|
|
||||||||||||
