Product Summary
The AT5722 is a Dual CPU Processor integrating a mAgic DSP and an ARM7TDMI RISC MCU, plus a total of 245 Kbytes SRAM. The AT5722 combines the flexibility of the ARM7TDMI RISC controller with the very high performance of the DSP. The AT5722 is expanded at run time with no degradation of system performance. This gives 16-bit code density (saving memory area and cost) coupled with 32-bit processor performance. A rich set of peripheral and a 32 Kbytes internal memory provide a highly flexible and integrated system solution.
Features
AT5722 absolute maximum ratings: (1)Forward Current: 50mA; (2)Reverse voltage: 6V; (3)Power dissipation: 75W; (4)Collector power dissipation: 75mW; (5)Collector current: 20mA; (6)Collector-emitter voltage: 35V; (7)Emitter-collector voltage: 6V; (8)Operating temperature: -25~+85°C; (9)Storage temperature: -40~+100°C; (10)Soldering temperature: 260°C.

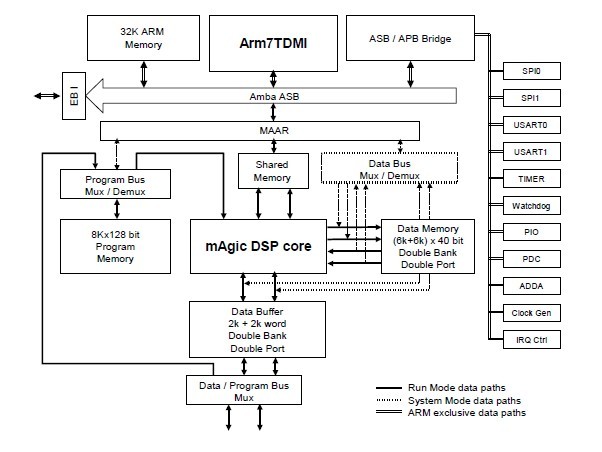

Diagrams
