AFCT-5805AZ

AFCT-5805AZ, Fiber Optic Transceiver Module, ZIP, 0 to 6V, 3.3V, 155 Mb/s

Rated 5 Rating 5 | reviews | Write a review

Price:: US $90.00~90.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
2000 ~ 2000 :	90.00 / Piece

PartNumber:: AFCT-5805AZ

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: ZIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-24

From Other Seller

Part Number:AFCT-5805AZ
US $90.00 - 90.00
Quantity:

piece

Product Summary

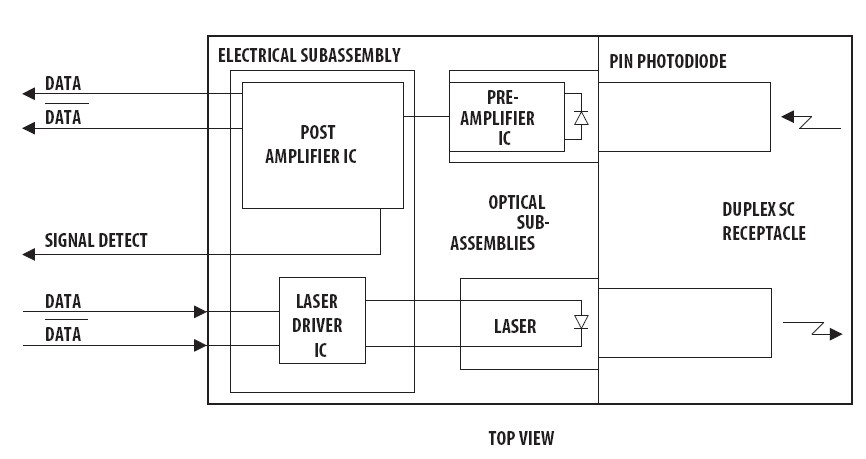

The AFCT-5805AZ transceiver is a high performance, cost effective module for serial optical data communications applications specified for a data rate of 155 Mb/s. The AFCT-5805AZ is designed to provide a SONET/SDH compliant link for intermediate reach links operating at +3.3 V or +5.0 V input voltage. The applications of the AFCT-5805AZ include ATM 155 Mb/s links for LAN backbone switches and routers, ATM 155 Mb/s links for WAN core, edge and access switches and routers, ATM 155 Mb/s links for add/drop multiplexers and demultiplexers, SONET OC-3/SDH STM-1 (S-1.1) interconnections.

Parametrics

AFCT-5805AZ absolute maximum ratings: (1)Storage Temperature TS: -40 to +85℃; (2)Lead Soldering Temperature/Time: +260/10 ℃/s; (3)Input Voltage: GND VCC V; (4)Power Supply Voltage: 0 to 6V.

Features

AFCT-5805AZ features: (1)1300 nm Single mode transceiver for links up to 15Km; (2)Compliant with T1.646-1995 Broadband ISDN and T1E1.2/98-011R1 SONET network to customer installation interface standards; (3)Compliant with T1.105.06 SONET physical layer specifications standard; (4)Multisourced 1 x 9 pin configuration; (5)Can replace LED multisourced 1 x 9 transceivers; (6)Unconditionally eyesafelaser IEC 825/CDRH Class 1 compliant; (7)Integral duplex SC connector receptacle compatible with TIA/EIA and IEC standards.; (8)RoHS compliant; (9)Single +3.3 V or +5.0 V power supply operation; (10)Wave solder and aqueous wash process compatible; (11)Manufactured in an ISO 9002 certified facility; (12)Considerable EMI margin to FCC Class B.
