Product Summary

The ADS1282IPW is an extremely high-performance, single-chip analog-to-digital converter (ADC) with an integrated, low-noise programmable gain amplifier (PGA) and two-channel input multiplexer (MUX). The ADS1282IPW is suitable for the demanding needs of energy exploration and seismic monitoring environments. The applications of the ADS1282IPW include Energy Exploration, Seismic Monitoring, and High-Accuracy Instrumentation.

Parametrics

ADS1282IPW absolute maximum ratings: (1)AVDD to AVSS: –0.3 to +5.5 V; (2)AVSS to DGND: –2.8 to +0.3 V; (3)DVDD to DGND: –0.3 to +3.9 V; (4)Input current: 100, momentary mA; (5)Input current: 10, continuous mA; (6)Analog input voltage: AVSS – 0.3 to AVDD + 0.3 V; (7)Digital input voltage to DGND: –0.3 to DVDD + 0.3 V; (8)Maximum junction temperature: +150℃; (9)Operating temperature range: –40 to +125℃; (10)Storage temperature range: –60 to +150℃.

Features

ADS1282IPW features: (1)High Resolution; (2)High Accuracy; (3)Low-Noise PGA; (4)Two-Channel Input MUX; (5)Inherently-Stable Modulator with Fast Responding Over-Range Detection; (6)Flexible Digital Filter; (7)Filter Bypass Option; (8)Low Power Consumption; (9)Offset and Gain Calibration Engine; (10)SYNC Input; (11)Digital Supply: 1.8V to 3.3V.

Diagrams

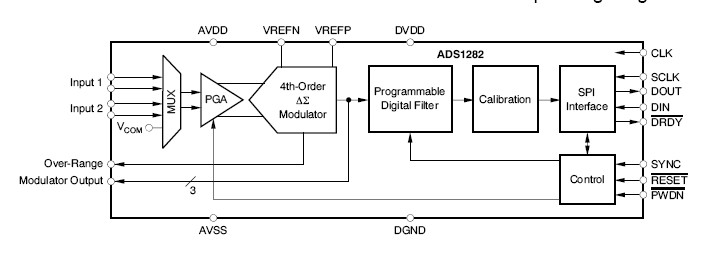

ADS1282IPW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS1282IPW
ADS1282IPW
Texas Instruments
ADC (A/D Converters) Ultra Hi Resolution Delta Sigma ADC
Data Sheet
0-1: $38.02
1-10: $35.77
10-25: $33.52
25-50: $32.87
ADS1282IPWG4
ADS1282IPWG4
Texas Instruments
ADC (A/D Converters) Ultra Hi Res Delta Sigma ADC
Data Sheet
0-34: $33.52
34-50: $32.87
50-100: $30.01
ADS1282IPWRG4
ADS1282IPWRG4
Texas Instruments
ADC (A/D Converters) Ultra Hi Res Delta Sigma ADC
Data Sheet
0-1601: $23.29
1601-2000: $23.29
ADS1282IPWR
ADS1282IPWR
Texas Instruments
ADC (A/D Converters) Ultra Hi Resolution Delta Sigma ADC
Data Sheet
0-1601: $23.29
1601-2000: $23.29
