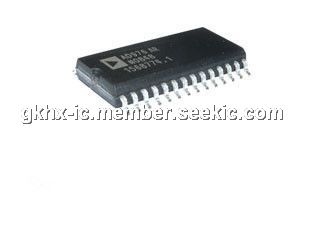

AD976

AD976, 16-bit, A/D converter, 700mW, ±25 V, 200 kSPS, SOP, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: AD976

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-11

From Other Seller

Part Number:AD976
US $0.01 - 6.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

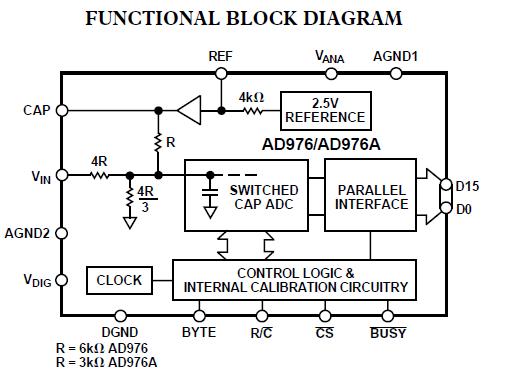

The AD976 is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference and a high speed parallel interface. The AD976 is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 V. The AD976 is comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.

Parametrics

AD976 absolute maximum ratings: (1)Analog Inputs: VIN: ±25 V, CAP: +VANA + 0.3 V to AGND2 – 0.3 V, REF: Indefinite Short to AGND2; (2)Ground Voltage Differences: DGND, AGND1, AGND: ±0.3 V; (3)Supply Voltages: VANA: 7 V, VDIG to VANA: ±7 V, VDIG: 7 V; (4)Digital Inputs: –0.3 V to VDIG + 0.3 V; (5)Internal Power Dissipation: PDIP (N), SOIC (R), SSOP (RS): 700 mW; (6)Junction Temperature: +150℃; (7)Storage Temperature Range (N, R, RS): –65℃ to +150℃; (8)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD976 features: (1)Fast 16-Bit ADC; (2)200 kSPS Throughput – AD976A; (3)100 kSPS Throughput – AD976; (4)Single 5 V Supply Operation; (5)Input Range: 610 V; (6)100 mW Max Power Dissipation; (7)Choice of External or Internal 2.5 V Reference; (8)High Speed Parallel Interface; (9)On-Chip Clock; (10)28-Lead Skinny DIP, SSOP or SOIC Packages.
