Product Summary
The AD1848KP-REEL is a Parallel-Port 16-Bit SoundPort Stereo Codec. It integrates the key audio data conversion and control functions into a single integrated circuit. The AD1848KP-REEL is intended to provide a complete, single-chip audio solution for business audio and multimedia applications requiring operation from a single +5V supply. The AD1848KP-REEL provides a direct, byte-wide interface to both ISA (“AT”) and EISA computer buses for simplified implementation on a computer motherboard or add-in card. The AD1848KP-REEL generates enable and direction controls for IC buffers such as 74_245.
Parametrics
AD1848KP-REEL absolute maximum ratings: (1)Temperature: 25℃; (2)Digital Supply (VDD): 5.0 V; (3)Analog Supply (VCC): 5.0 V; (4)Word Rate (FS): 48 kHz; (5)Input Signal: 1008 Hz; (6)Analog Output Passband: 20 Hz to 20 kHz; (7)ADC FFT Size: 2048; (8)DAC FFT Size: 8192; (9)VIH: 2.4 V; (10)VIL: 0.8 V; (11)VOH: 2.4 V; (12)VOL: 0.4 V.
Features
AD1848KP-REEL features: (1)Single-Chip Integrated ∑△ Digital Audio Stereo Codec; (2)Supports the Microsoft Windows Sound System; (3)Multiple Channels of Stereo Input; (4)Analog and Digital Signal Mixing; (5)Programmable Gain and Attenuation; (6)On-Chip Signal Filters; (7)Digital Interpolation; (8)Analog Output Low-Pass; (9)Sample Rates from 5.5 kHz to 48 kHz; (10)68-Lead PLCC and 68-Lead TQFP Packages; (11)Operation from +5 V Supplies; (12)Byte-Wide Parallel Interface to ISA and EISA Buses; (13)Supports One or Two DMA Channels and Programmed I/O.

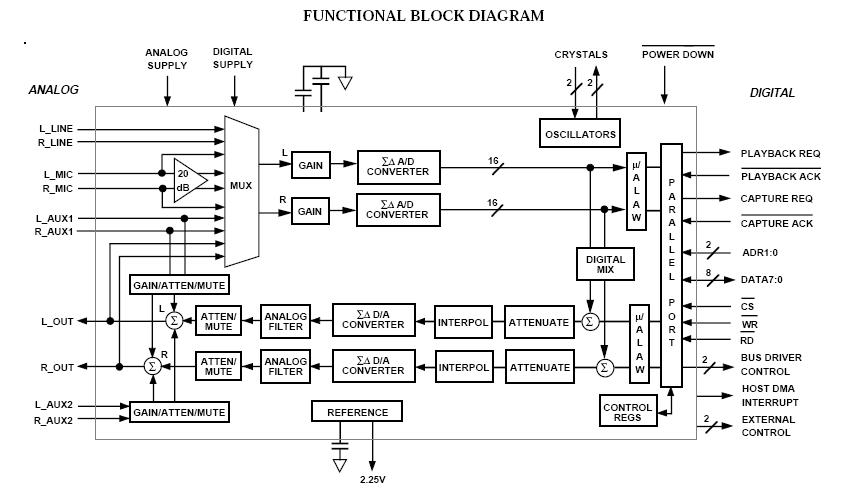

Diagrams
