Product Summary

The ACT4088 is a current-mode step-down DC/DC converter that supplies up to 1.5A into 5V from a 12V input. 1.4MHz switching frequency allows the use of tiny external components, and internal loop compensation provides simple, stable power supplies with a minimum of external components. Optimized for use with ceramic input and output capacitors, the ACT4088 provides a very compact 1.5A power supply for space constrained mobile and consumer applications. The applications of the ACT4088 include TFT LCD Monitors, Portable DVDs, Headphones, MP3 Players, etc, Car-Powered or Battery-Powered Equipment, Set-Top Boxes, Telecom Power Supplies, DSL and Cable Modems and Routers.

Parametrics

ACT4088 absolute maximum ratings: (1)IN Supply Voltage: -0.3 to 32 V; (2)SW Voltage: -1 to VIN + 1 V; (3)BST Voltage: VSW - 0.3 to VSW + 7 V; (4)EN, FB Voltage: -0.3 to 6 V; (5)Continuous SW Current Internally: Limited A; (6)Junction to Ambient Thermal Resistance (θJA): 220℃/W; (7)Maximum Power Dissipation: 0.5W; (8)Operating Junction Temperature: -40 to 150℃; (9)Storage Temperature: -55 to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

ACT4088 features: (1)Wide 4.5V to 28V Input Voltage Range; (2)1.5A Output Current (12VIN to 5VOUT); (3)Output Adjustable Down to 0.81V; (4)0.3Ω Internal Power MOSFET; (5)Up to 92% Efficiency; (6)Stable with Low ESR Ceramic Output Capacitors; (7)Fixed 1.4MHz Operating Frequency; (8)Internal Soft-Start Function; (9)Over Current Protection with Hiccup-Mode; (10)Thermal Shutdown; (11)Available in a SOT23-6 Package.

Diagrams

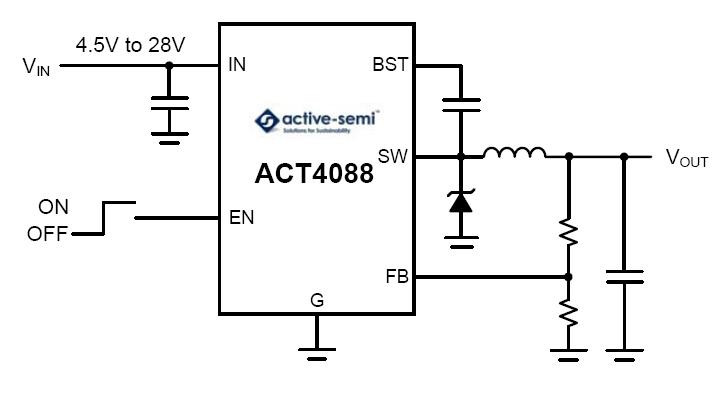

ACT4088 block diagram
