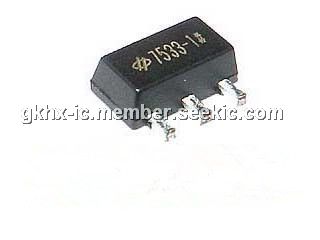

Product Summary

The 7533-1(89) is a Low Dropout CMOS Voltage Regulator developed using CMOS technology. The 7533-1(89) performs with high output voltage accuracy, low quiescent current, the allow operation voltage as high as 24V.

Parametrics

7533-1(89) absolute maximum ratings: (1)VIN: 24V; (2)Iout: 200mA; (3)Vout: Vss-0.3 to Vout+0.3 V; (4)SOT23 Pd: 300mW; (5)SOT89 Pd: 700mW; (6)TO92 Pd: 500mW; (7)TOpr: -40 to +85 ℃; (8)Tstg: -70 to +125 ℃; (9)Tsolder: 260℃, 10s.

Features

7533-1(89) features: (1)high output voltage accuracy:±2％; (2)low dropout voltage: 40mV; (3)low quiescent current: 2uA; (4)Max input voltage: 24V.

Diagrams

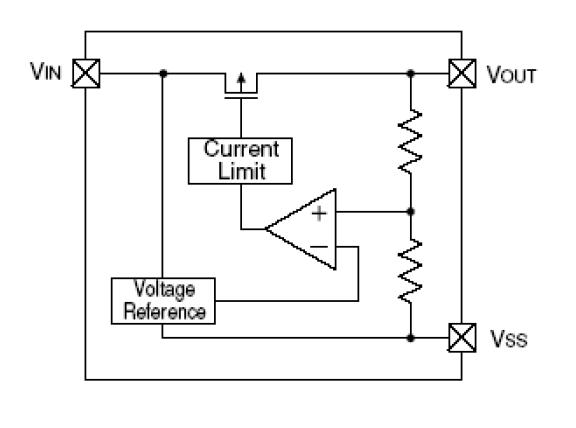

7533-1(89) block diagram
