Product Summary

The 74FCT3244ASO is a 3.3V CMOS octal buffer/line driver. It is built using advanced dual metal CMOS technology. The 74FCT3244ASO is designed to be used as memory data and address drivers, clock drivers, and bus-oriented transmitter/receivers. The three-state controls are designed to operate the 74FCT3244ASO in a dual-nibble or single-byte mode. All inputs are designed with hysteresis for improved noise margin.

Parametrics

74FCT3244ASO absolute maximum ratings: (1)VTERM(2) Terminal Voltage with Respect to GND: –0.5 to +4.6V; (2)VTERM(3) Terminal Voltage with Respect to GND: –0.5 to +7.0V; (3)VTERM(4) Terminal Voltage with Respect to GND: –0.5 to VCC + 0.5V; (4)TA Operating Temperature:–40 to +85℃; (5)TBIAS Temperature Under Bias:–55 to +125℃; (6)TSTG Storage Temperature:–55 to +125℃; (7)PT Power Dissipation: 1.0W; (8)IOUT DC Output Current:–60 to +60mA.

Features

74FCT3244ASO features: (1)0.5 MICRON CMOS Technology; (2)ESD ＞2000V per MIL-STD-883, Method 3015;; (3)＞200V using machine model (C = 200pF, R = 0); (4)25 mil Center SSOP and QSOP Packages; (5)Extended commercial range of -40℃ to +85℃; (6)VCC = 3.3V ±0.3V, Normal Range or; (7)VCC = 2.7V to 3.6V, Extended Range; (8)CMOS power levels (0.4μW typ. static); (9)Rail-to-Rail output swing for increased noise margin; (10)Military product compliant to MIL-STD-883, Class B.

Diagrams

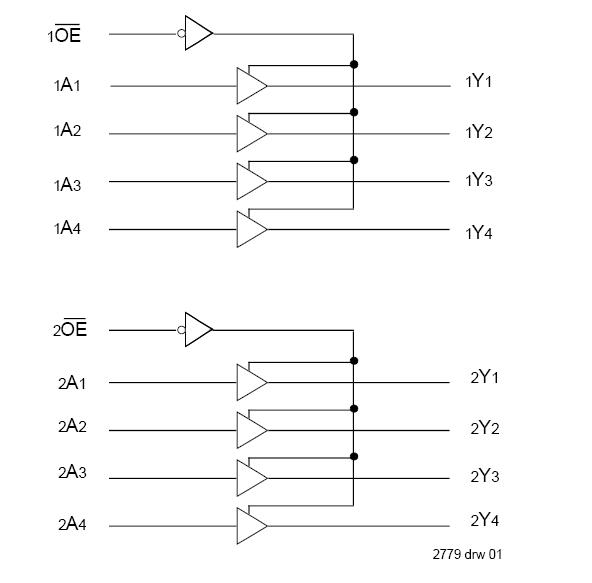

74FCT3244ASO block diagram
