Product Summary

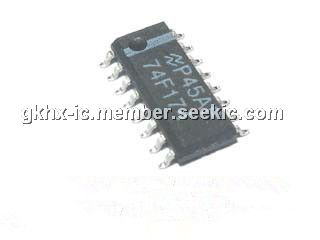

The 74F174 is a high-speed hex D-type flip-flop. The 74F174 is used primarily as a 6-bit edge-triggered storage register. The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition. The 74F174 has a Master Reset to simultaneously clear all flip-flops.
Parametrics
74F174 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature under Bias: -55℃ to +125℃; (3)Junction Temperature under Bias: -55℃ to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage (Note 2): -0.5V to +7.0V; (6)Input Current (Note 2): -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V); (8)Standard Output: -0.5V to VCC; (9)3-STATE Output: -0.5V to +5.5V; (10)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (11)ESD Last Passing Voltage (Min): 4000V.
Features
74F174 features: (1)Edge-triggered D-type inputs; (2)Buffered positive edge-triggered clock; (3)Asynchronous common reset; (4)Guaranteed 4000V minimum ESD protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74F174 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
74F174PC |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
|
74F174PC_Q |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
 |
74F174SC |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
|
74F174SC_Q |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
|
74F174SCX |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
 |
74F174SJ |
Fairchild Semiconductor |
Flip Flops Hex D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
|
74F174SJ_NL |
Fairchild Semiconductor |
Flip Flops |
Data Sheet |
Negotiable |
|
||||
