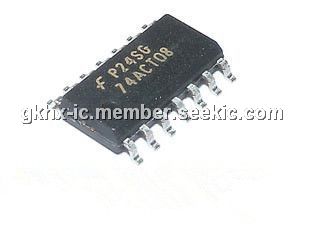

Product Summary
The 74ACT08M is an advanced high-speed CMOS quad 2-input and gate fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The 74ACT08M is composed of 2 stages including buffer output, which enables high noise immunity and stable output. The 74ACT08M is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
Parametrics
74ACT08M absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7V; (2)VI DC Input Voltage: -0.5 to VCC + 0.5V; (3)VO DC Output Voltage: -0.5 to VCC + 0.5V; (4)IIK DC Input Diode Current: ±20mA; (5)IOK DC Output Diode Current: ±20mA; (6)IO DC Output Current: ±50mA; (7)ICC or IGND DC VCC or Ground Current: ±200mA; (8)Tstg Storage Temperature: -65 to +150℃; (9)TL Lead Temperature (10 sec): 300℃.
Features
74ACT08M features: (1)high speed: tPD = 4.5ns (TYP.) at VCC = 5V; (2)low power dissipation: ICC = 2mA(Max.) at TA=25℃; (3)compatible with ttl outputs; (4)VIH = 2V (Min.), VIL = 0.8V (Max.) 50W transmission line driving; (5)capability; (6)symmetrical output impedance: |IOH| = IOL = 24mA (MIN); (7)balanced propagation delays: tPLH @ tPHL; (8)operating voltage range: VCC (OPR) = 4.5V to 5.5V; (9)Pin and function compatible with 74 series 08; (10)improved latch-up immunity.

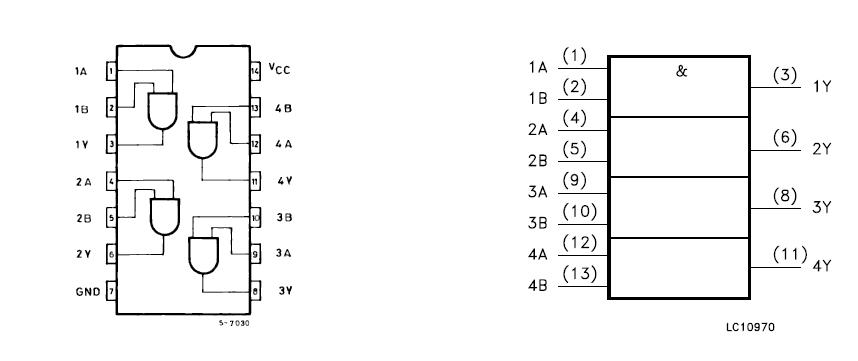

Diagrams
