74AC14MX

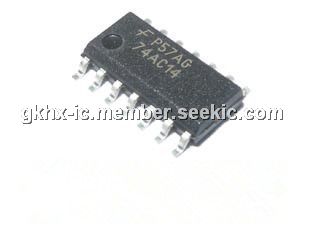

74AC14MX, advanced high-speed CMOS hex inverter, SOP, -0.5V to +7V, ±20mA, ±300mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: 74AC14MX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-06

From Other Seller

Part Number:74AC14MX
US $0.01 - 6.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74AC14MX is an advanced high-speed CMOS hex inverter fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The 74AC14MX is ideal for low power applications mantaining high speed operation similar to equivalent Bipolar Shottky TTL. The 74AC14MX is composed of 3 stages including buffer output, which enables high noise immunity and stable output. This together with its schmitt trigger function allows it to be used on line receivers with slow rise/fall input segnals. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Parametrics

74AC14MX absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7V; (2)VI DC Input Voltage: -0.5 to VCC + 0.5V; (3)VO DC Output Voltage: -0.5 to VCC + 0.5V; (4)IIK DC Input Diode Current: ±20mA; (5)IOK DC Output Diode Current: ±20mA; (6)IO DC Output Current: ±50mA; (7)ICC or IGND DC VCC or Ground Current: ±300mA; (8)Tstg Storage Temperature: -65℃ to +150℃; (9)TL Lead Temperature (10 sec): 300℃.

Features

74AC14MX features: (1)high speed: tPD = 6 ns (typ.) at VCC = 3.3V; (2)low power dissipation: ICC = 4mA (max.) at TA =25℃; (3)high noise immunity: VNIH =VNIL = 28%VCC (min.); (4)50W transmission line driving capability; (5)symmetrical output impedance: |IOH| = IOL =24mA (min); (6)balanced propagation delays: tPLH @ tPHL; (7)operating voltage range: VCC (OPR) = 2V to 6V; (8)pin and function compatible with 74 series 14; (9)improved latch-up immunity.
