Product Summary

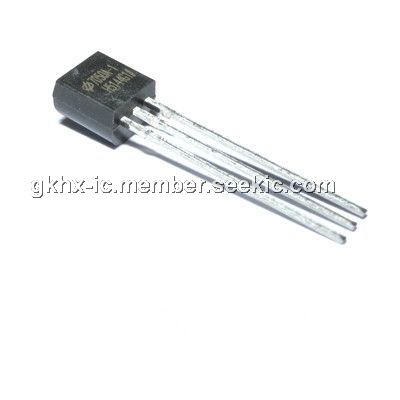

The 7050A-1 is a set of three terminal low power voltage detector implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 5V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, the 7050A-1 can be used with external components to detect user specified threshold voltages. The applications of the 7050A-1 include Battery checkers, Level selectors, Power failure detectors, Microcomputer reset, Battery memory backup, Non-volatile RAM signal storage protectors.

Parametrics

7050A-1 absolute maximum ratings: (1)Supply Voltage: VSS-0.3V to VSS+26V; (2)Output Voltage: VSS-0.3V to VDD+0.3V; (3)Output Current: 50mA; (4)Storage Temperature: -50℃ to 125℃; (5)Power Consumption: 200mW; (6)Operating Temperature: -40℃ to 85℃.

Features

7050A-1 features: (1)Low power consumption; (2)Low temperature coefficient; (3)High input voltage range (up to 24V); (4)Output voltage accuracy: tolerance ±3%; (5)Built-in hysteresis characteristic; (6)TO-92, SOT-89 and SOT-25 package.

Diagrams

7050A-1 block diagram
